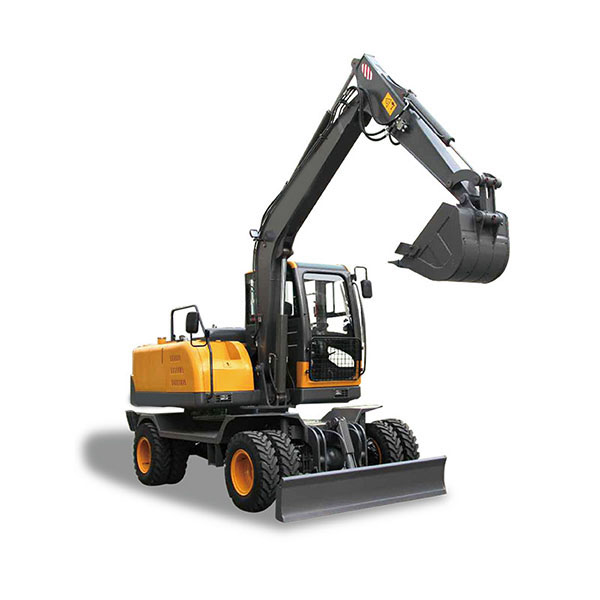

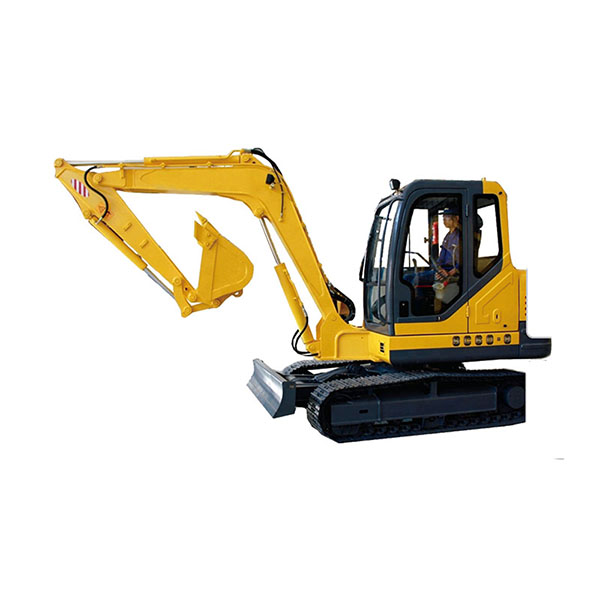

8T Wheel/Crawler Excavator high fuel efficiency，super power Saving energy and protecting environment .
|
TECHNOLOGY SECIFICATION |
|||||
|
Machine Specfication |
Operating Weight |
8000 kg |
Performance Parameter |
Engine power |
55/2200 kw/rpm |
|
Bucket Capacity |
0.3 m3 |
Max.engine torque |
269/1610 N.m/rpm |
||
|
Transport length |
6442 mm |
Hydraulic pump |
Shimadzu-SGPIA27F2H9 |
||
|
Transport width |
2152 mm |
Pilot pressure |
3 Mpa |
||
|
Transport height |
2835 mm |
Working pressure |
20 Mpa |
||
|
Tail swing Radius |
2057 mm |
Rated flow |
118.8 L/min |
||
|
Track Width |
2600 mm |
Hydraulic tank capacity |
116 L |
||
|
Min.ground clearance |
318 mm |
fuel capacity |
138L |
||
|
Working Range |
Movable arm length |
3500 mm |
Rotating speed |
10 rpm |
|
|
Arm length |
1800 mm |
Max. travelling speed |
35 km/h |
||
|
Max.excavation distance |
6563 mm |
Digging force of bucket |
41.4 kN |
||
|
Max.Digging depth |
4462 mm |
Max.drawbar pull |
47 kN |
||
|
Max.Digging height |
6680 mm |
Gradeability |
30° |
||
|
Max.dumping height |
4876 mm |
Bulldozer blade(W×L) |
2140/310 mm |
||
|
Min. turning radius |
2440mm |
Certified capacity |
27+27 ml/r |
||
