SL35 3.5T Small Excavator

3.5T Small Excavator high fuel efficiency,super power Saving energy and protecting environment

SL35 3.5T Small Excavator Description

SL35 3.5T Small Excavator Instruction


The 3.5 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.

SL35 3.5T Small Excavator Parameter

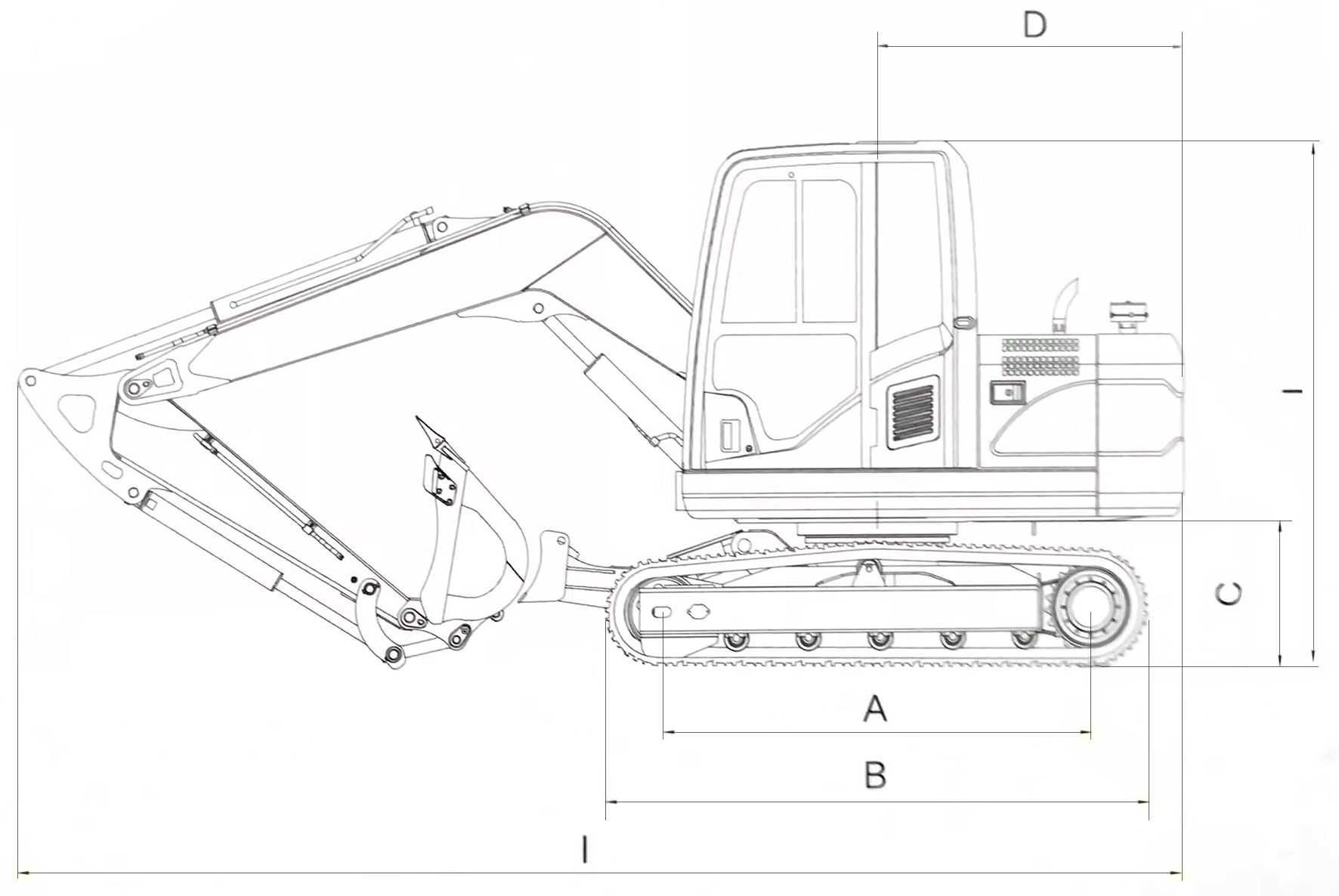

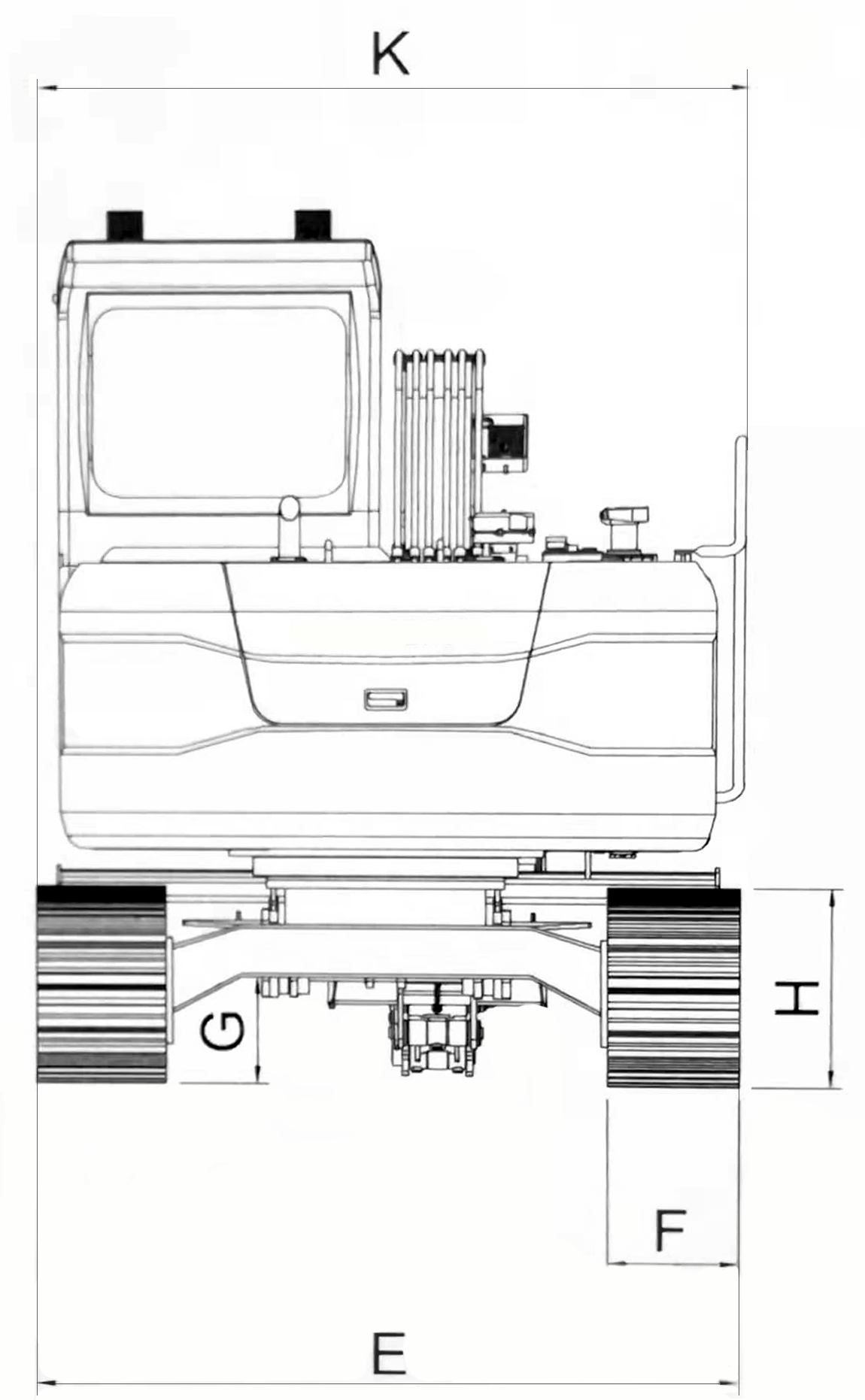

Boundary dimension

Transport length

4400 mm

Transport height

2200 mm

Chassis width

1530/1600 mm

Track width

300 mm

Total track length

2175 mm

Track gauge

1703 mm

Pltom ground clearance

557 mm

Working rage

Max. Digging height

4450 mm

Max.dumping height

3050 mm

Max. Digging depth

2545 mm

Maximum digging distanc

4630 mm

Max.Digging radius

4730 mm

Minimum radius of gyration

1820 mm

Maximum lfting height of earth shovel

359 mm

The maximum digging depth of dozer

268 mm

Min Tail swing radius

1170 mm

Engine

Engine model

ZN490

Power

34 KW

Coling method

Water- cooling Diesel engine

Hydraulic system

Operating Pressure

22 mpa

Waliking motor

Two speed plunger

Rotary motor

Variable plunger

The main pump

32cc Plunger 32cC

Flow

99/min

Performance parameter

Clirmbing abilifty

35°

Max. digging force

55.6KN

Travel speed

2.4/4. 6km/h

Rall contact pressure on the ground

34.8kpa(0.355kgf/8cm2)

Specification


Bucket Capacity

0.26m3

Fuel reservoir

60L

Hydraulic tank capacity

75L

Operating Weight

3600kg

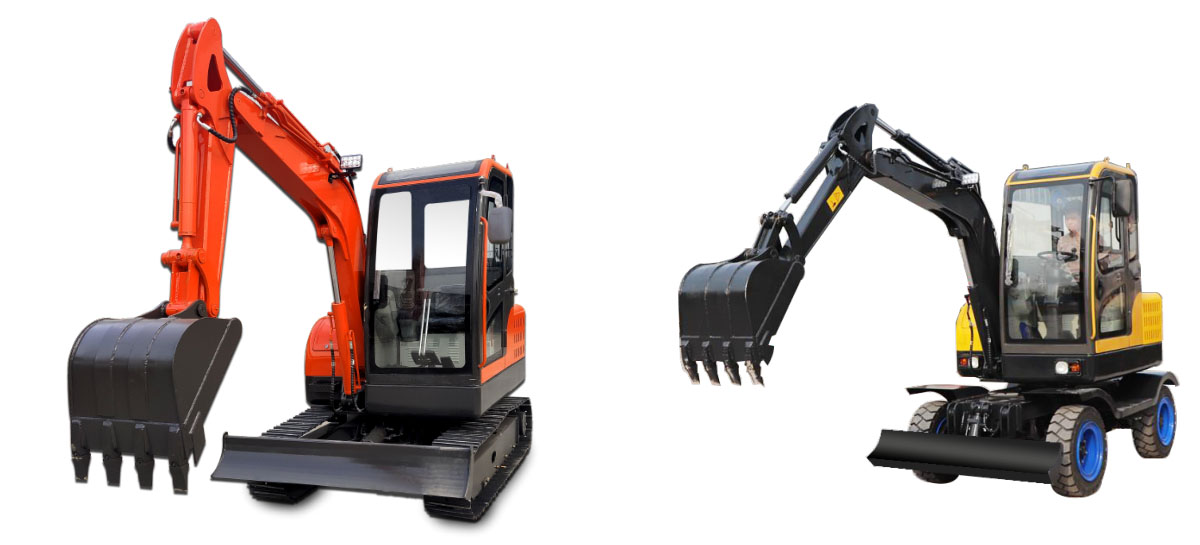

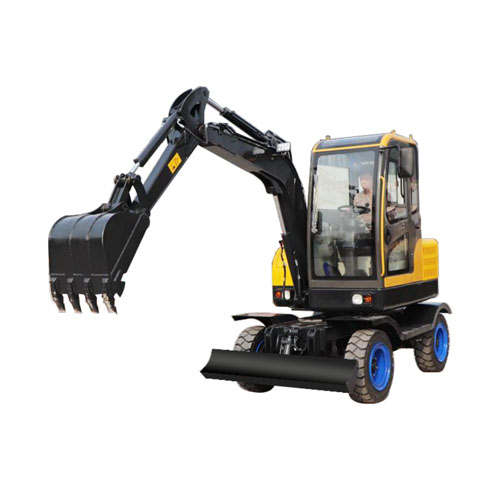

SL35 3.5T Small Excavator  Images
