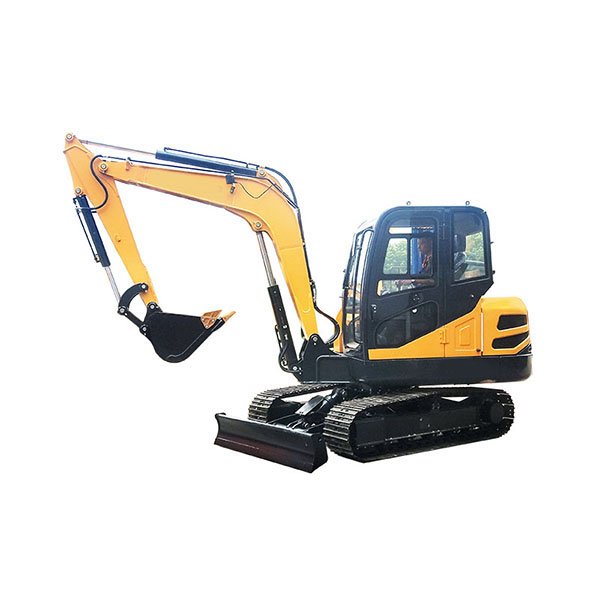

6.5T Crawler Excavator high fuel efficiency，super power Saving energy and protecting environment .
|
Model |
SL65 |
|
Machine Size |
|
|
Standard Bucket capacity |
0.21m3 |
Overall dimension(L*W*H) |
5940mm*1880mm*2570mm |
|
|
Swing speed |
11rpm |
Height of cabin |
2600mm |
|
|
Maximum Grade ability |
35° |
Track length on ground(Axle base) |
1990mm |
|
|
Maximum Bucket digging force |
48KN |
Track gauge |
1480mm |
|
|
Maximum Arm digging force |
35KN |
Minimum Ground clearance |
353mm |
|
|
Hydraulic system pressure |
28Mpa |
Swing radius at tail |
1689mm |
|
|
Machine weight |
6100kg |
Working Range |
||
|
Fuel tank |
87L |
Maximum Digging height |
5499mm |
|
|
Hydraulic oil tank |
100L |
Maximum Dumping height |
3845mm |
|
|
Engine |
Maximum Digging depth |
3808mm |
||
|
Emission Standard |
Tier 3/ Stage lll |
Maximum Vertical digging depth |
2983mm |
|
|
Make /Model |
Kubota Engine /V2607 |
Maximum Digging radius |
6128mm |
|
|
Power /Rotation speed |
42.4kw(58HP)@2000rpm |
Minimum swing radius |
2607mm |
|
|
Number of cylinder |
4 |
Maximum Lifting height of blade |
376mm |
|
|
Track System |
Maximum Cutting depth of blade |
474mm |
||
|
Maximum Travel speed |
2.4/4.3 km/h |
|
|
|
|
Width of track shoe |
400mm |
|
|
|
|
Number of track shoe per side |
40pcs |
|
|
|
|
Number of upper roller per side |
1 |
|
|
|
|
Number of bottom roller per side |
5 |
|
|
|
