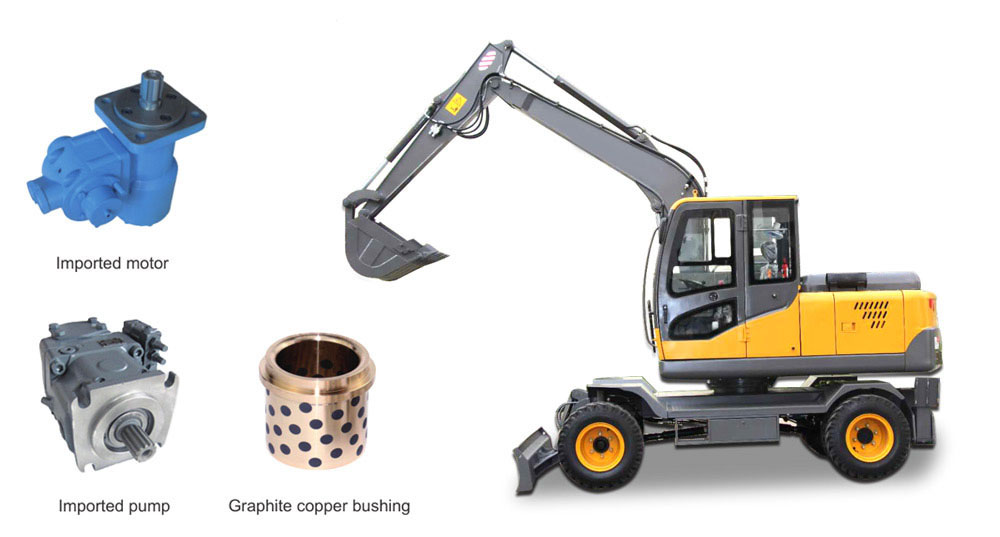

The 7 ton excavator have crawler type and wheel type, it's reliable and of user-friendly.
The 7 ton excavator have crawler type and wheel type, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
|
Model |
SL75 |
|
Standard Bucket capacity |
0.28m3 |
|
Swing speed |
11rpm |
|
Maximum Grade ability |
35° |
|
Maximum Bucket digging force |
56KN |
|
Maximum Arm digging force |
38KN |
|
Hydraulic system pressure |
27Mpa |
|
Machine weight |
7500kg |
|
Fuel tank |
120L |
|
Hydraulic oil tank |
100L |
|
Engine |
|
|
Emission Standard |
Tier 3/ Stage I |
|
Make /Model |
Kubota Engine (V2607) |
|
Power /Rotation speed |
42. 4kw(58HP)@2000rpm |
|
Number of cylinder |
4 |
|
Track System |
|
|
Maximum Travel speed |
2.5/4.5km/h |
|
Width of track shoe |
450mm |
|
Number of track shoe per side |
39pcs |
|
Number of upper roller per side |
1 |
|
Number of bottom roller per side |
5 |
|
Machine Size |
|
|
Overall dimension (L*W*H) |
6054mm*2216mm*2672mm |
|
Height of cabin |
2672mm |
|
Track length on ground(Axle base) |
2209mm |
|
Track gauge |
1745mm |
|
Minimum Ground clearance |
375mm |
|
Swing radius at tail |
1730mm |
|
Working Range |
|
|
Maximum Digging height |
7023mm |
|
Maximum Dumping height |
5195mm |
|
Maximum Digging depth |
3898mm |
|
Maximum Vertical digging depth |
2968mm |
|
Maximum Digging radius |
6182mm |
|
Minimum swing radius |
1740mm |
|
Maximum Lifting height of blade |
382mm |
|
Maximum Cutting depth of blade |
332mm |
|
|
|
