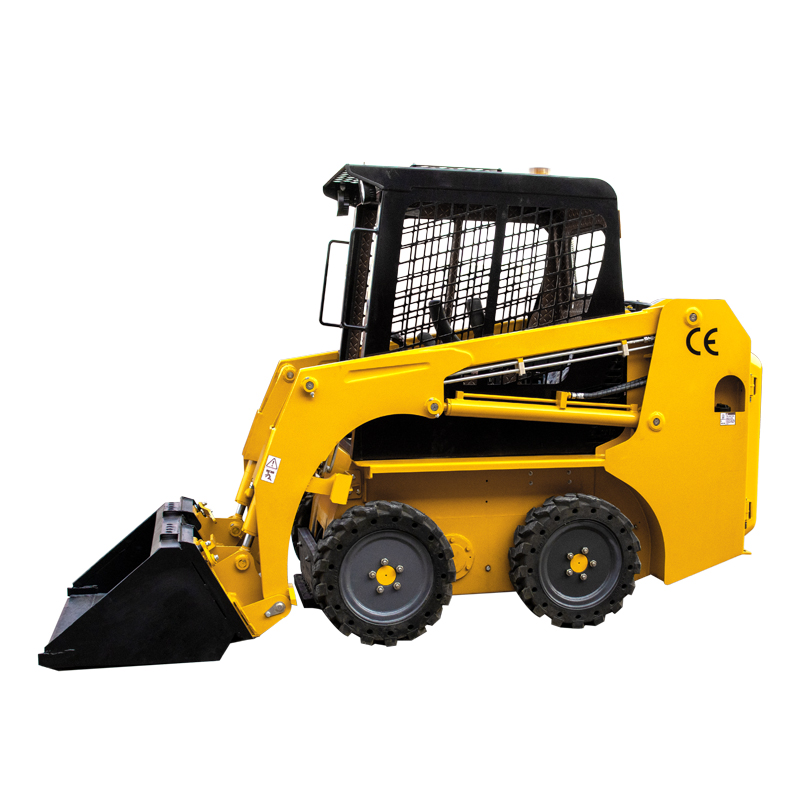

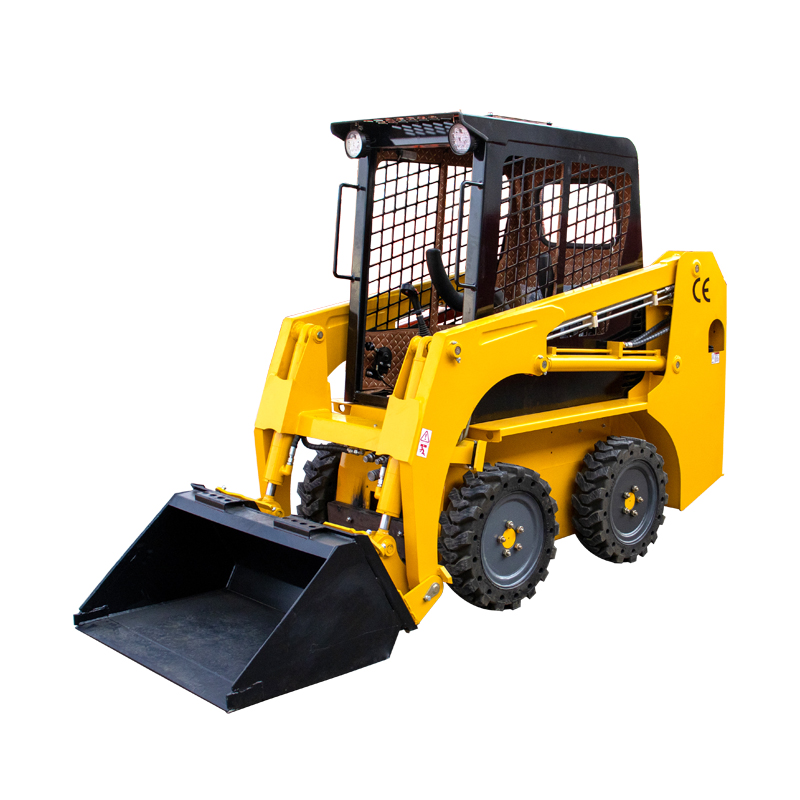

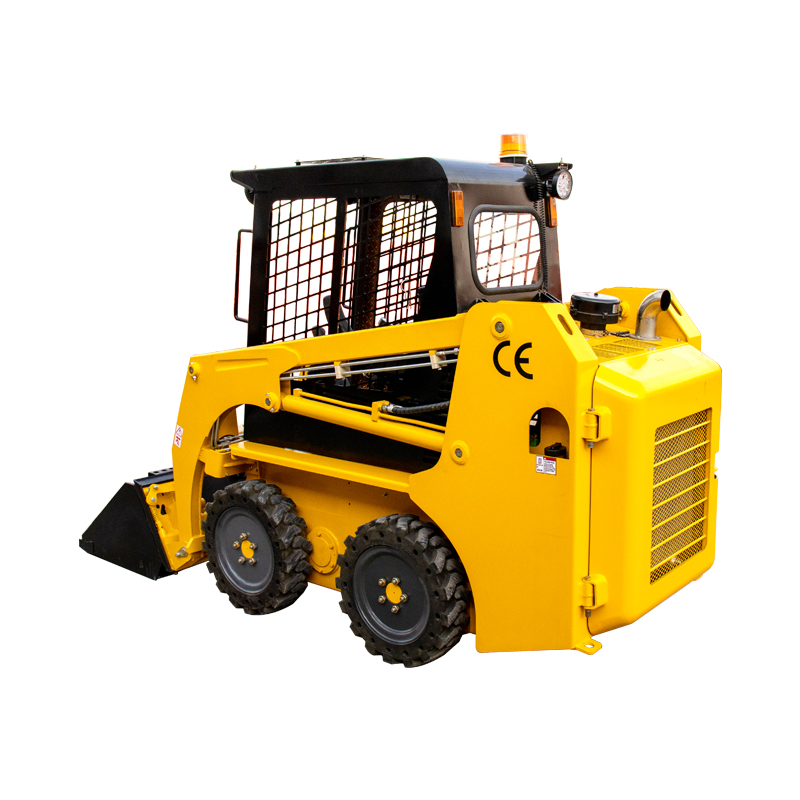

Perkins engine 403D-11 18.4kw engine, Italian Lufthansa hydraulic pump, American Danfoss motor, imported gear pump, domestic oil cylinder
Perkins engine 403D-11 18.4kw engine, Italian Lufthansa hydraulic pump, American Danfoss motor, imported gear pump, domestic oil cylinder, Italian multi-way valve, open cab, hydraulic control, 560*155 solid tires, 40″ shovel Bucket, liquid brake, Italian fast quick-change joint (through Lynx plane)
Specifications
Rated operating capacity(kg) 300
Tipping load(kg) 600
Bucket capacity(m3) 0.2
Operationg weight(kg) 1500
Max. travel speed(km/h) 9
Hydraulic pump flow(L/min) 50
Fuel tank capacity(L) 25
Tires 560*155
Overall dimensions(mm) 2430×1000×2050
Dimensions
Height at maximum extension(mm) 3126
Height to bucket hinge pin(mm) 2399
Width with bucket(mm) 1200
Track width(mm) 747
Wheelbase(mm) 722
Ground clearance(mm) 148
Dump angle 36°
Dumping height(mm) 1882
Maximum reach(mm) 458
Engine
Maker/Model perkins Engine 403D-11
Net power 18.4KW/2800rpm
Type 3Cylinder in-line, Water cooled, 4 stroke,
Diesel engine
Displacement(L) 1.642
Standard
Open-type operator cab
Hydraulic joystick controls
Standard bucket
Auxiliary hydraulic couplers
Attachments：
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,
Combinition bucket,Mower,Asphalt cutter,and More
