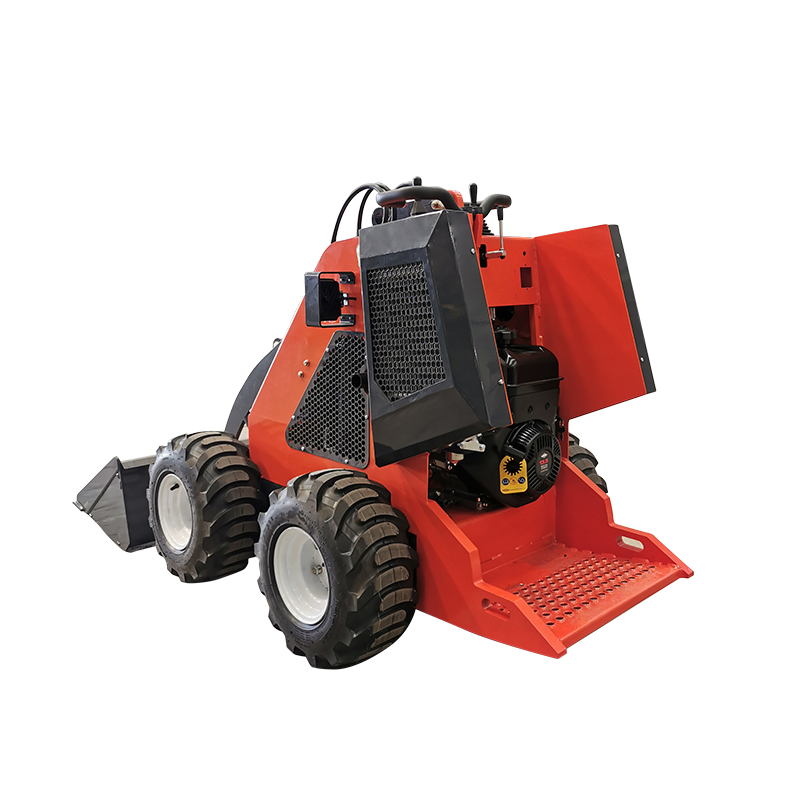

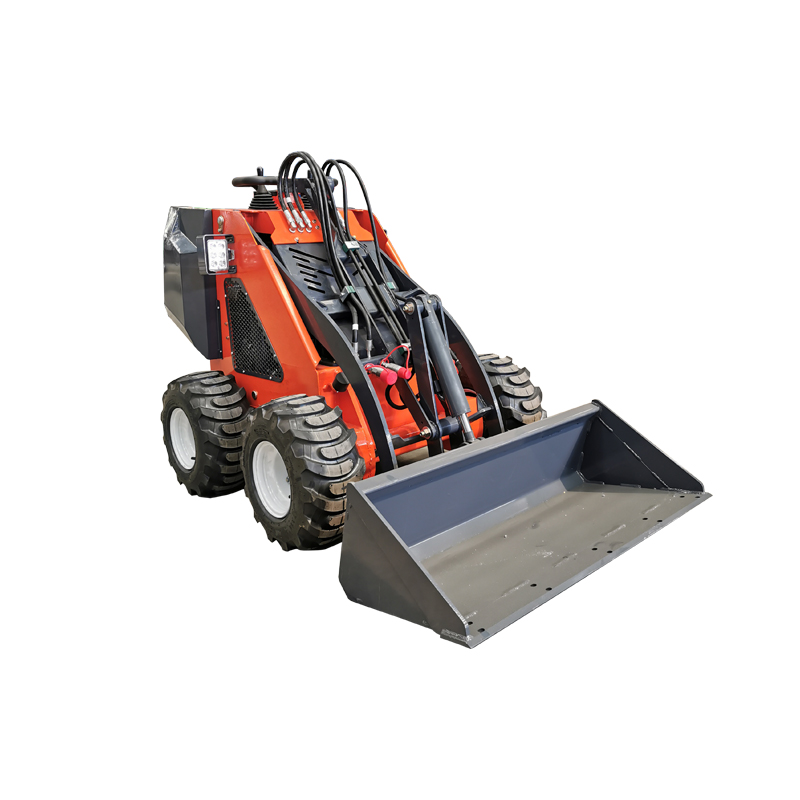

Skid loaders are also known as skid steer loaders, multi-purpose engineering vehicles, and multi-functional engineering machines.
Skid loaders are also known as skid steer loaders, multi-purpose engineering vehicles, and multi-functional engineering machines. It is a wheeled special chassis device that realizes the steering of the vehicle by using the difference in line speed between the two sides. It is mainly used in occasions where the work site is small, the ground is undulating, and the work content changes frequently.
It is suitable for infrastructure construction, industrial applications, terminal loading and unloading, urban streets, houses, barns, barns, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery. There are two types of skid steer loaders: wheeled and tracked.
Model |
HTS360 |
||||||
Engine |
Rated power (KW) |
American Briggs&Stratton engine 21HP/23HP |
|||||
Standard speed (rpm) |
3600 |
||||||
noise(Db) |
≤95 |
||||||
Hydraulic system |
System pressure (Mpa) |
17 |
|||||
Working time (s) |
Raise |
Tipping |
Low |
||||
4.27 |
1.34 |
3.31 |
|||||
Performance parameter |
|
Metric |
Inch |
||||
Load weight |
200 Kg |
||||||
Bucket capacity |
0.12 m3 |
4.26 ft3 |
|||||
Max lifting power |
375 Kg |
827 Lb |
|||||
Speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|||||
Operating weight |
Track tire |
855kg |
1884 Lb |
Item |
Metric |
Inch |
Max working height (H3) |
2065mm |
81.3inch |
Max pin height (H2) |
1803 mm |
71 inch |
Max discharge height (H1) |
1386 mm |
54.6 inch |
The highest unload distance(E) |
471mm |
18.5 inch |
Max angle of unloading(α3) |
32° |
32° |
Retracting angle (α2) |
33° |
33° |
Angle of departure (α1) |
18° |
18° |
Total height(H) |
1309mm |
51.5inch |
The height from the ground(H1) |
123mm |
4.8inch |
wheelbase(L1) |
690 mm |
27.2 inch |
No bucket height(L3) |
1778 mm |
70.0 inch |
Total width (B2) |
800 mm |
31.5 inch |
Bucket width(B1) |
820 mm |
32.3inch |
Total length (L)(with bucket ) |
2210 mm |
87inch |
Turning radius (R) |
1236mm |
48.7 inch |
