Because its minimum turning radius is less than half of that of the same level of articulated loader, it is especially suitable for operations such as urban infrastructure, roads or construction site
1. Because its minimum turning radius is less than half of that of the same level of articulated loader, it is especially suitable for operations such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and even narrow spaces such as cabins.

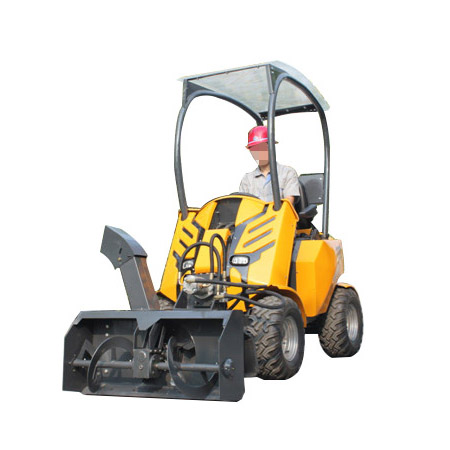

2. Road safety can be directly used for snow cleaning and cleaning operations. With snow cleaning and deicing accessories, the sliding equipment can quickly clean large areas of snow and ice, and benefit from the flexibility of the equipment itself. Effective and wide-ranging work on related equipment.
3.Road safety can be directly used for snow cleaning and cleaning operations. With snow cleaning and deicing accessories, the sliding equipment can quickly clean large areas of snow and ice, while benefiting from the flexibility of the equipment itself ensures the relevant Effective and extensive work of the equipment.
|
Item |
HT200 |
|
|
Metric |
Inch |
|
|

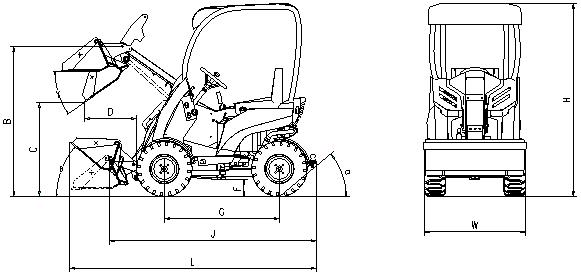

Max pin height （B） |
1769 mm |
69.6 inch |
|
Max height of unloading （C） |
1260mm |
49.6inch |
|
The highest point of unloading distance（D） |
558 mm |
21.9 inch |
|
Total length （H） |
2020 mm |
79.5 inch |
|
The height from ground （F） |
160 mm |
6.3 inch |
|
Wheelbase （G） |
1207 mm |
47.5 inch |
|
No bucket length （J） |
2030 mm |
79.9 inch |
|
Total width （W） |
970 mm |
38.2 inch |
|
Bucket width （K） |
980mm |
38.6 inch |
|
Total length （L）（with bucket ） |
2424 mm |
93.1 inch |
|
Angle of departure （α） |
40° |
40° |
|
Bucket unloading angle（γ） |
27° |
26° |
|
Collecting bucket （θ） |
48° |
48° |
Main performance parameter
|
Item |
HT200 |
|
|
Metric |
Inch |
|
|
Rated power |
17.15KW |
23HP |
|
Fuel tank of capacity |
22L |
4.8 UKgal |
|
Hydraulic tank capacity |
21L |
4.6 UKgal |
|
Loading weight |
260Kg |
573.2 Lb |
|
Bucket capacity |
0.15 m3 |
5.32 ft3 |
|
Max traction force |
5 KN |
1124Lbf |
|
Max lift force |
4.6 KN |
1034 Lbf |
|
Speed |
0-8km/h |
0-4.97mile/h |
|
Loading capacity |
260 Kg |
573.2 Lb |
|
Minimum turning radius |
2320mm |
91.3 inch |
|
Operation weight |
840kg |
1851.9lb |
