SL-A1/SL-A2 Mini Skid Steer Loader

Skid loaders are also known as skid steer loaders, multi-purpose engineering vehicles, and multi-functional engineering machines. It is a wheeled special chassis device that realizes the steering of t

SL-A1/SL-A2 Mini Skid Steer Loader Description


Description of SL-A1/SL-A2 Mini Skid Steer Loader

Skid loaders are also known as skid steer loaders, multi-purpose engineering vehicles, and multi-functional engineering machines. It is a wheeled special chassis device that realizes the steering of the vehicle by using the difference in line speed between the two sides. It is mainly used in occasions where the work site is small, the ground is undulating, and the work content changes frequently.

It is suitable for infrastructure construction, industrial applications, terminal loading and unloading, urban streets, houses, barns, barns, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery. There are two types of skid steer loaders: wheeled and tracked.

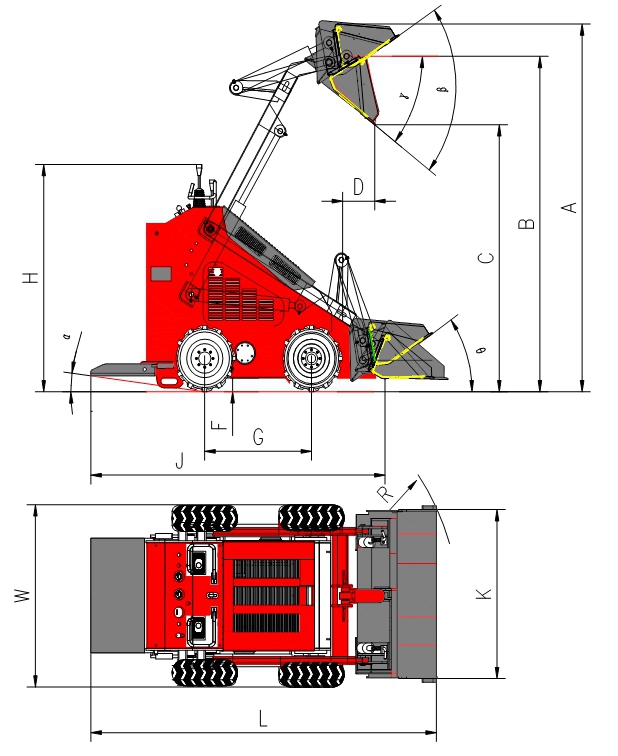

Parameter of SL-A1/SL-A2 Mini Skid Steer Loader

Model

SL-A1

SL-A2

Max working heightA

2355 mm

2355 mm

Max pin height B

2088 mm

2122 mm

Max dump heightC

1942 mm

1976 mm

The highest point discharge distanceD

464mm

528 mm

Bucket swing angleβ

43°

43°

Bucket unloading angleγ

30°

30°

Opening-closing angleθ

37°

37°

Angle of departureα

24°

30°

Total height H

1479mm

1514 mm

The height from the groundF

195mm

230 mm

Wheelbase G

817mm

1000 mm

No bucket lengthJ

195 mm

230 mm

Total width W

1029mm

980mm

Bucket width K

1150mm

1150mm

Total lengthL)(with bucket

2438 mm

2438 mm

Turning radius (R)

1492 mm

1507 mm


Main performance parameters:

Engine

Rated power

24.4KW+5%

Rotating speedrpm

2800

NoiseDb

≤95

Hydraulic System

Hydraulic pressureMpa

20















     Performance parameters



Metric

Metric

Max lifting Force(kg)

365 Kg

320Kg

Bucket capacity

0.15 m3

0.15 m3

Max lifting power

730Kg

900Kg

speed

6Km/h

6Km/h

Chevron  tire

23*8.5-12

230*72*40

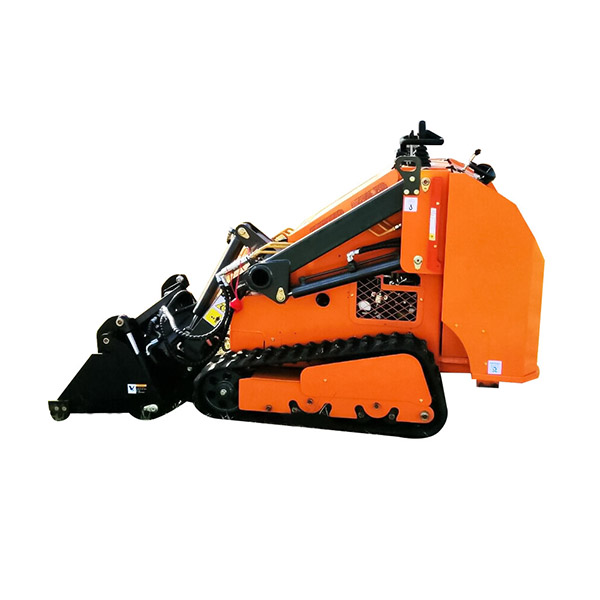

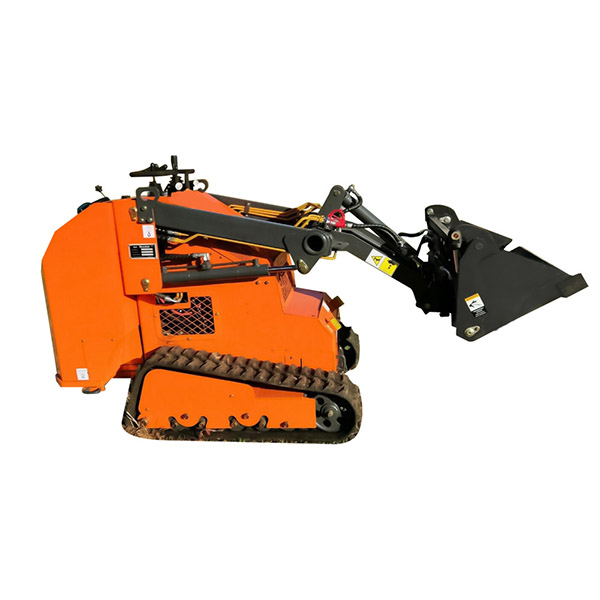

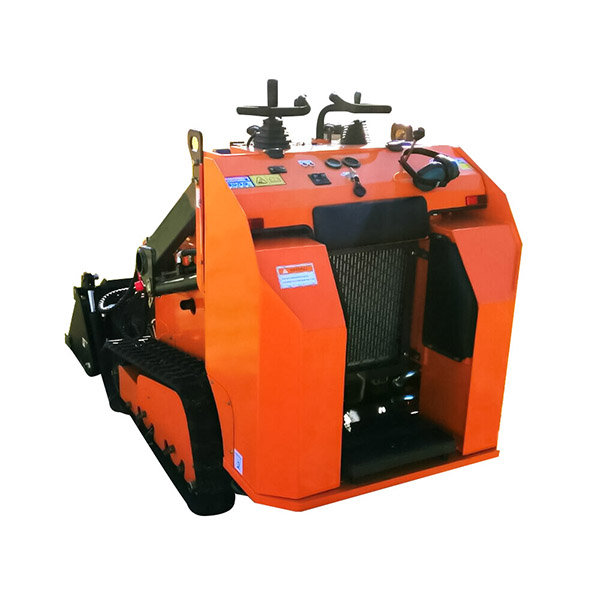

SL-A1/SL-A2 Mini Skid Steer Loader Images
