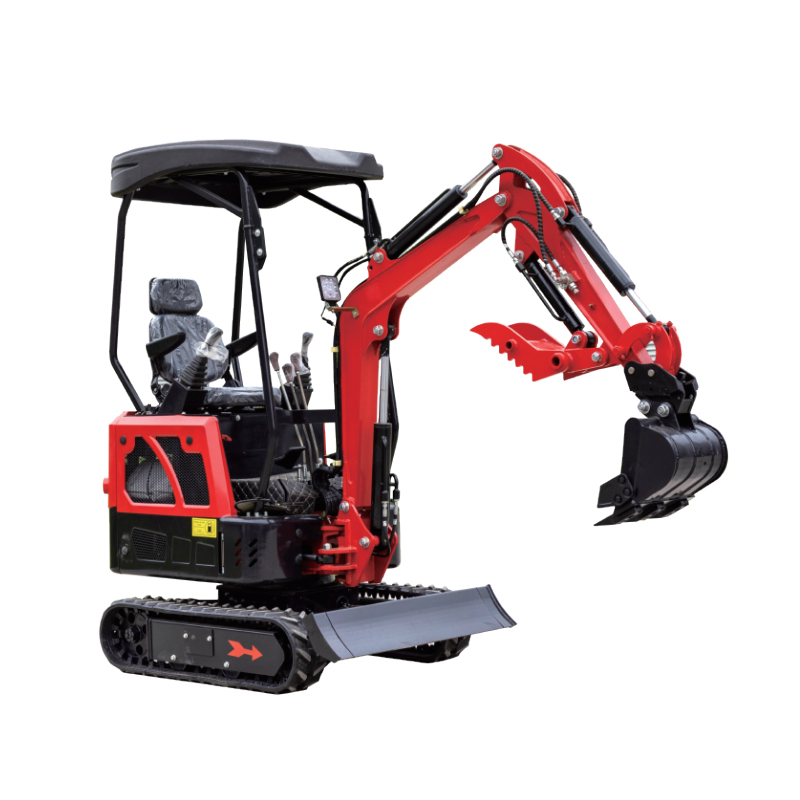

SL15-2 Mini Excavator
|
Model:SL15-2 |
|
|
Emission Standard |
Tier 5/ Stage V |
|
Engine |
Kubota Engine |
|
Model |
D722 |
|
Power /Rotation speed |
10.2kw(15HP)2500rpm |
|
Number of cylinder |
3 |
|
Maximum Travel speed |
4km/h |
|
PERFORMANCE PARAMETER |
|
|
Standard Bucket capacity |
0.025m³ |
|
Swing speed |
9 rpm |
|
Max. Grade ability |
35° |
|
Maximum Bucket digging force |
18KN |
|
Maximum Arm digging force |
11KN |
|
Hydraulic system pressure |
18.2Mpa |
|
Machine weight |
1350kg |
|
MACHINE SIZE |
|
|
Overall dimension (L*W*H) |
2450mm*940mm*2150mm |
|
Chassis width |
1000mm |
|
Axle base(Track length on ground) |
1300mm |
|
Track width |
200mm |
|
Min.Ground clearance |
380mm |
|
MAIN DEMENSIONS |
|
|
Maximum Digging height |
2640mm |
|
Maximum Dumping height |
2100mm |
|
Maximum Digging depth |
1800mm |
|
Maximum Vertical digging depth |
2230mm |
|
Maximum Digging radius |
2350mm |
|
Minimum swing radius |
1190mm |
