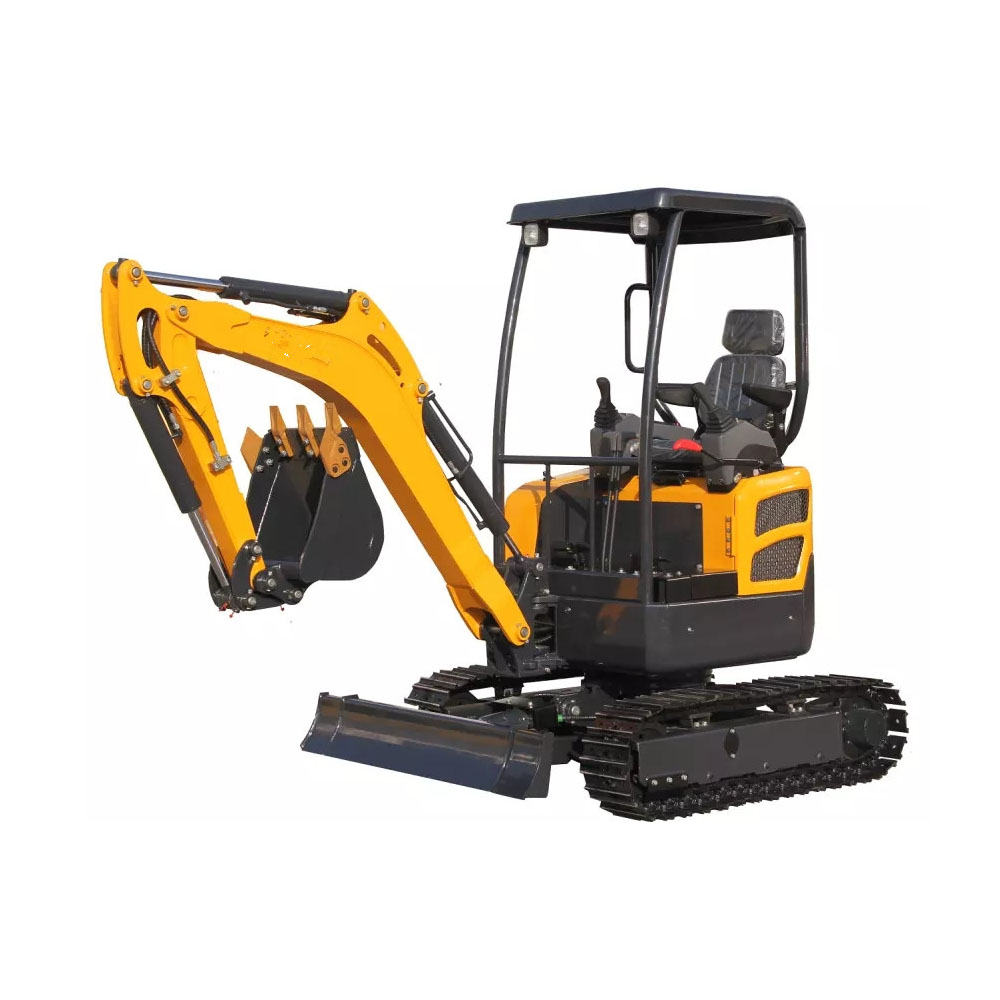

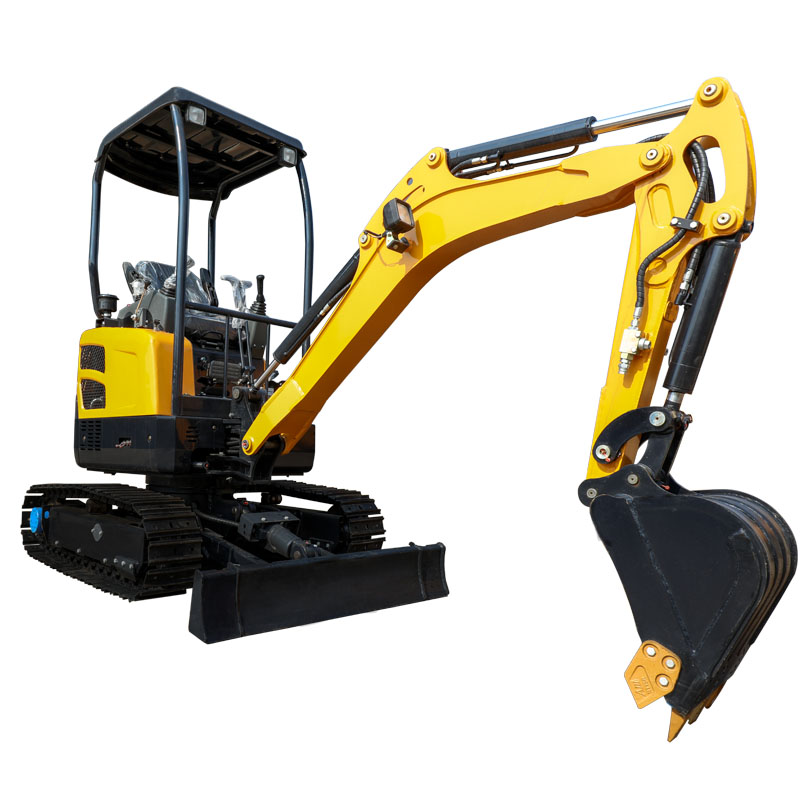

SL20 2T Mini Excavator

Laidong engine 18.4kw, Retractable shoes, Boom swing, Tailless rotation.

SL20 2T Mini Excavator Description

SL20 2T Mini Excavator Instruction


The crawler excavator is a compact excavator ,which matched KUBOTA national III engine , the boom ofexcavator can swing to left or right , suitable for different director digging for your working , fitted international brand main pump and valves and driving motor and slewing motor, hydraulic pilot servo operation system,with steel track, with broken pipeline system , the machine can change track from steel to rubber. Cantelescoping the track frame. Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.

1-Japan KUBOTA engine , 14.1kw, Euro 5/EPA

2-China brand pump

3-China brand valves

4-EATON brand slewing motor

5-EATON brand driving motor

6-Open cabin(Canopy)

7-Hydraulic pilot servo operation system

8-Rubber track :230mm

9-With broken pipeline system

10- Bucket capacity: 0.07m³

11-Telescopic track frame



SL20 2T Mini Excavator Parameter


Machine Size



Overall dimension (L*W*H)

3555mm*1300mm*2290mm

Axle base(Track length on ground)

1230mm

Track gauge

760mm

Min.Ground clearance

150mm

Swing radius at tail

650mm

Track System



Maximum Travel speed

4km/h

Width of track shoe

230mm

Number of track shoe per side

38pcs

Number of upper roller per side

1

Number of bottom roller per side

3

Performance Parameter



Standard bucket capacity

0.07m³

Swing speed

9rpm

Max. Grade ability

35°

Max. Bucket digging force

18KN

Max. Arm digging force

11KN

Hydraulic system pressure

21.5Mpa

Machine weight

2000kg

Engine



Emission Standard

Euro 5/EPA

Engine Brand

Kubota

Model

D1105

Power/Rotation speed

14.1kw(20HP) 2000rpm

Number of cylinder

3

Working Range



Max. Digging height

3700mm

Max. Dumping height

2440mm

Max. Digging depth

2400mm

Max. Vertical digging depth

2025mm

Max. Digging radius

4040mm

Min .swing radius

1610mm

Max. Lifting height of blade

240mm

Max. Cutting depth of blade

270mm

Boom swing angle(Left)

75°

Boom swing angle(Right)

45°

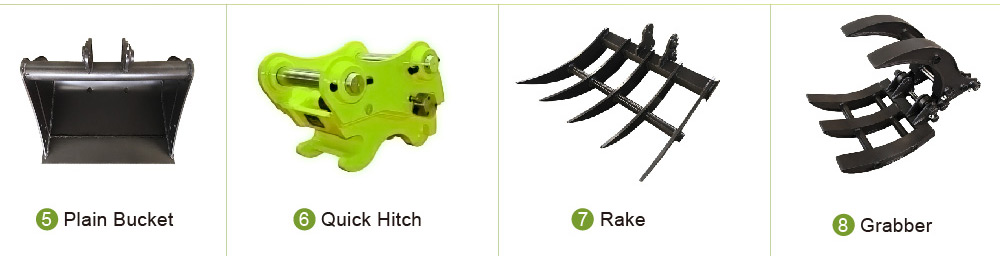

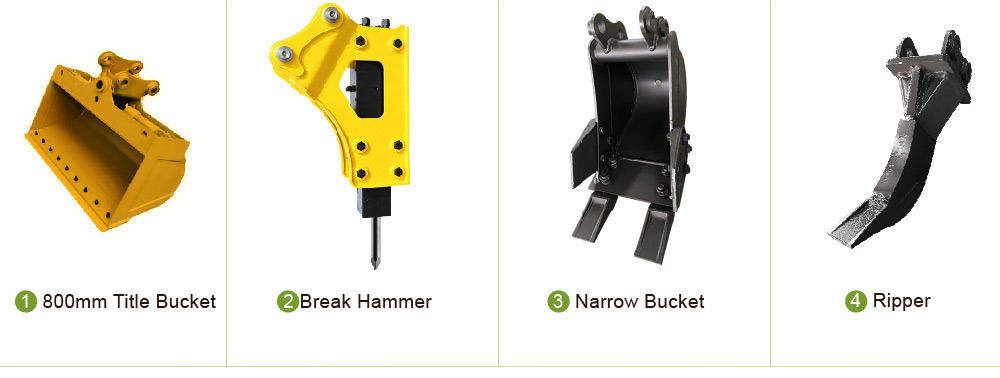

Accessories
One Machine, multi-usage.Quick and easy replacement of accessories
