SL12 1.2T Mini Excavator

SL12 1.2T Mini Excavator the quality is guaranteed, the maintenance is convenient, the excavator you deserve

SL12 1.2T Mini Excavator Description

SL12 1.2T Mini Excavator Parameter

Model

SL12

Weight

1200kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

Kubota D722

Bore stroke

Three cylinders,water cool

Rated power

10.2kw/2500r/min

Displacement

6.8mlr

Main pump

G5-6

Swing motor

China brand

Travelling motor

China brand

USA EATON motor(optional)

Travel speed

1.5kmh

Battery

12V 60A

Main Demensions


Overall dimension( LxWxH)

2770x896x1490 mm

Wheelbase

910 mm

Total length of track

1230mm

Plattorm ground clearance

380 mm

Platform back tuming radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassls ground clearance

132 mm

Track height

320 mm

Operating Range


Max Digging depith

1650 mm

Max. Vertical dgging depth

1375 mm

Max Digging height

2610 mm

Max. Dumping height

1850 mm

Max, Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade helght of bulldozer blade

345 mm

Max. Digging depth of bulozer blade

255 mm

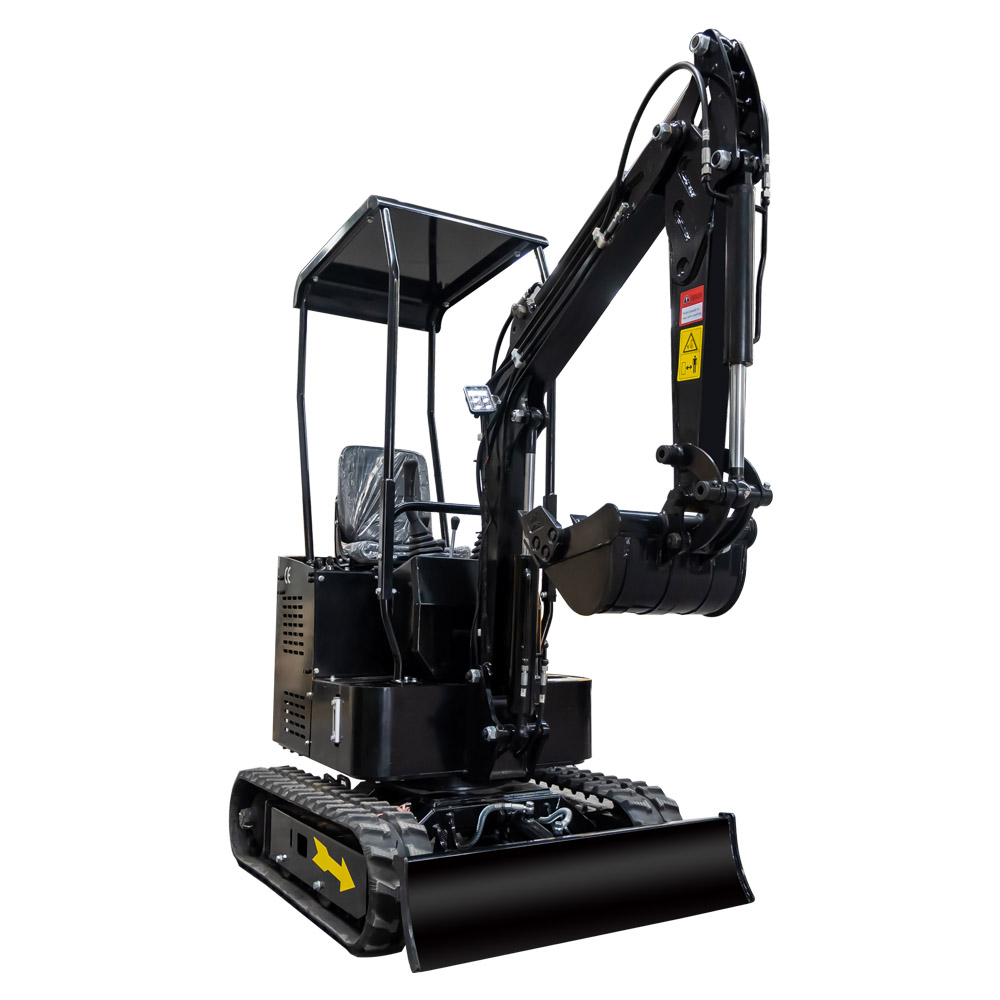

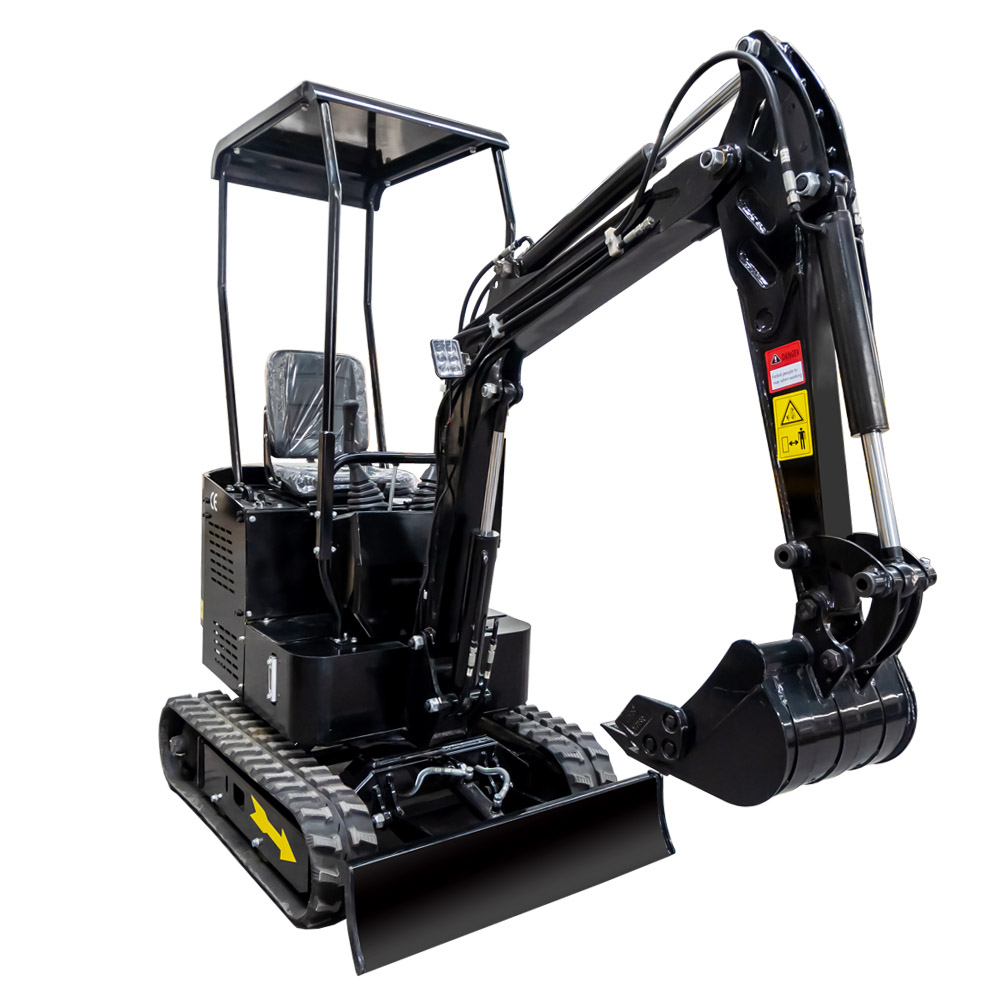

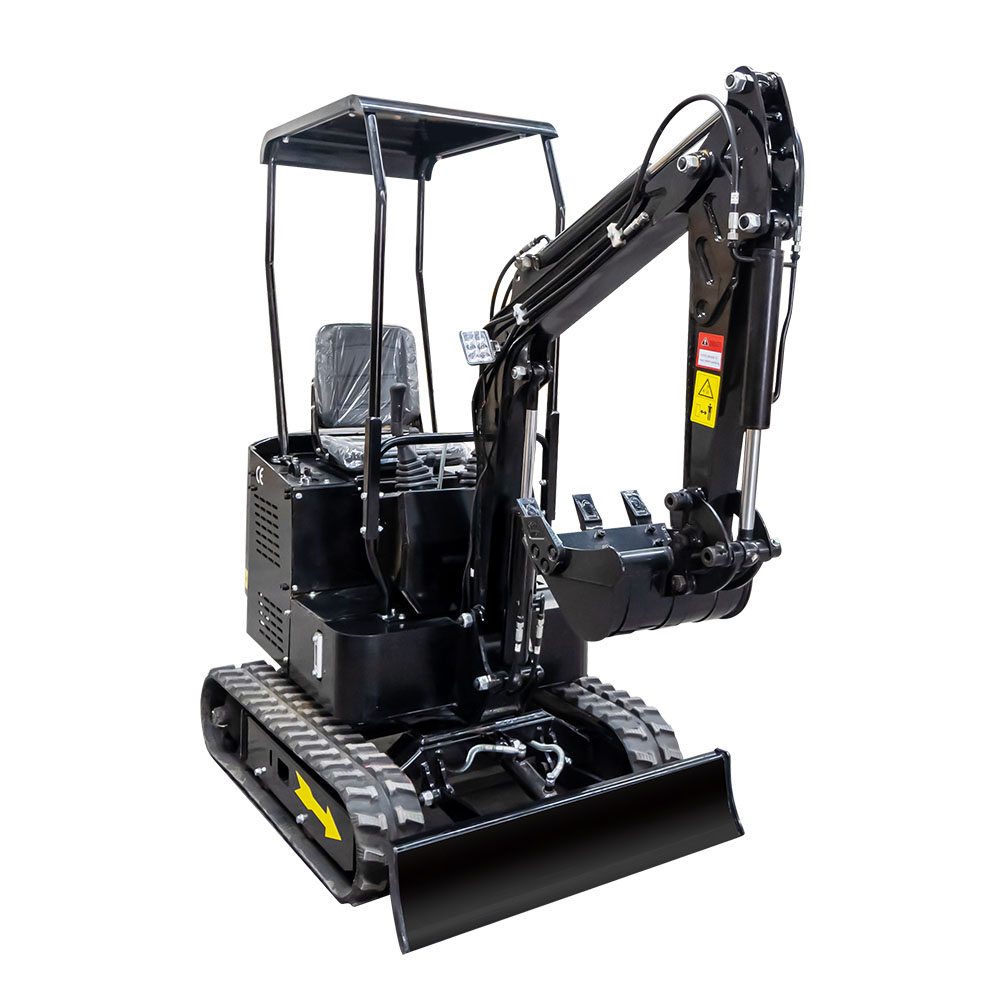

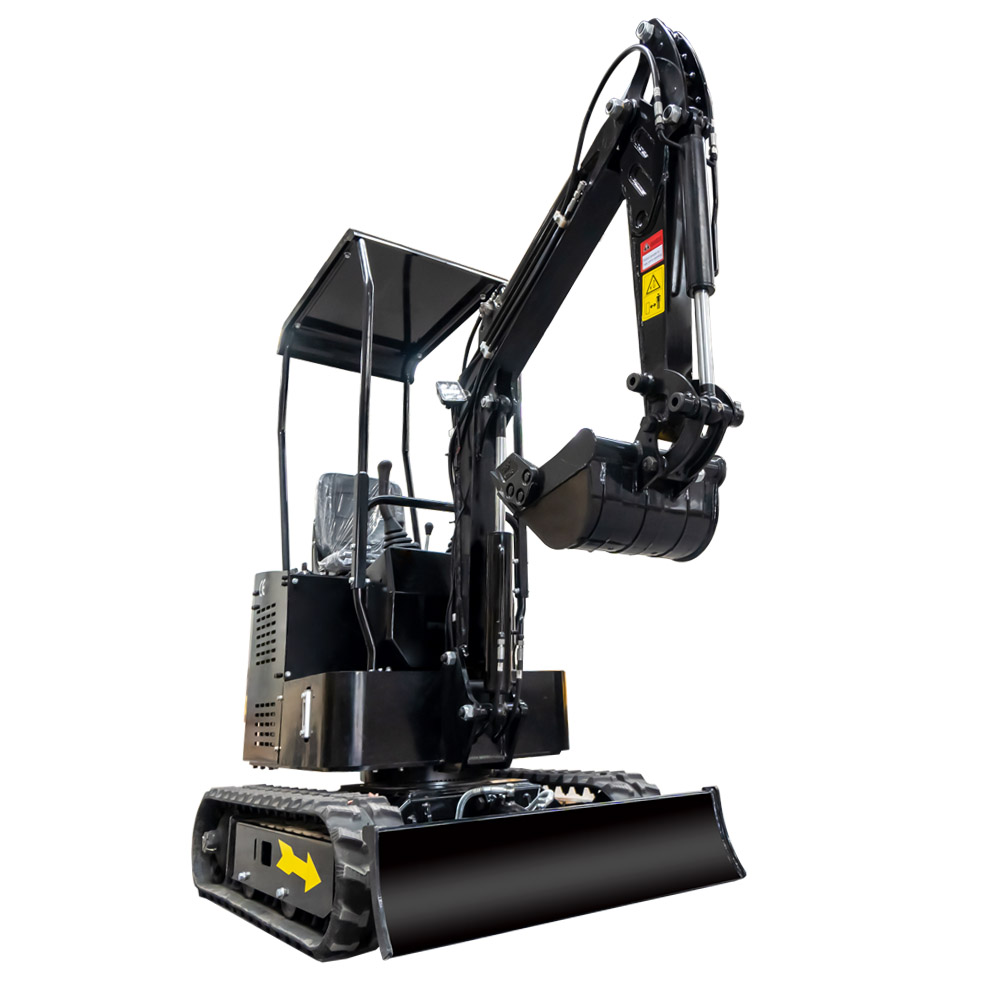

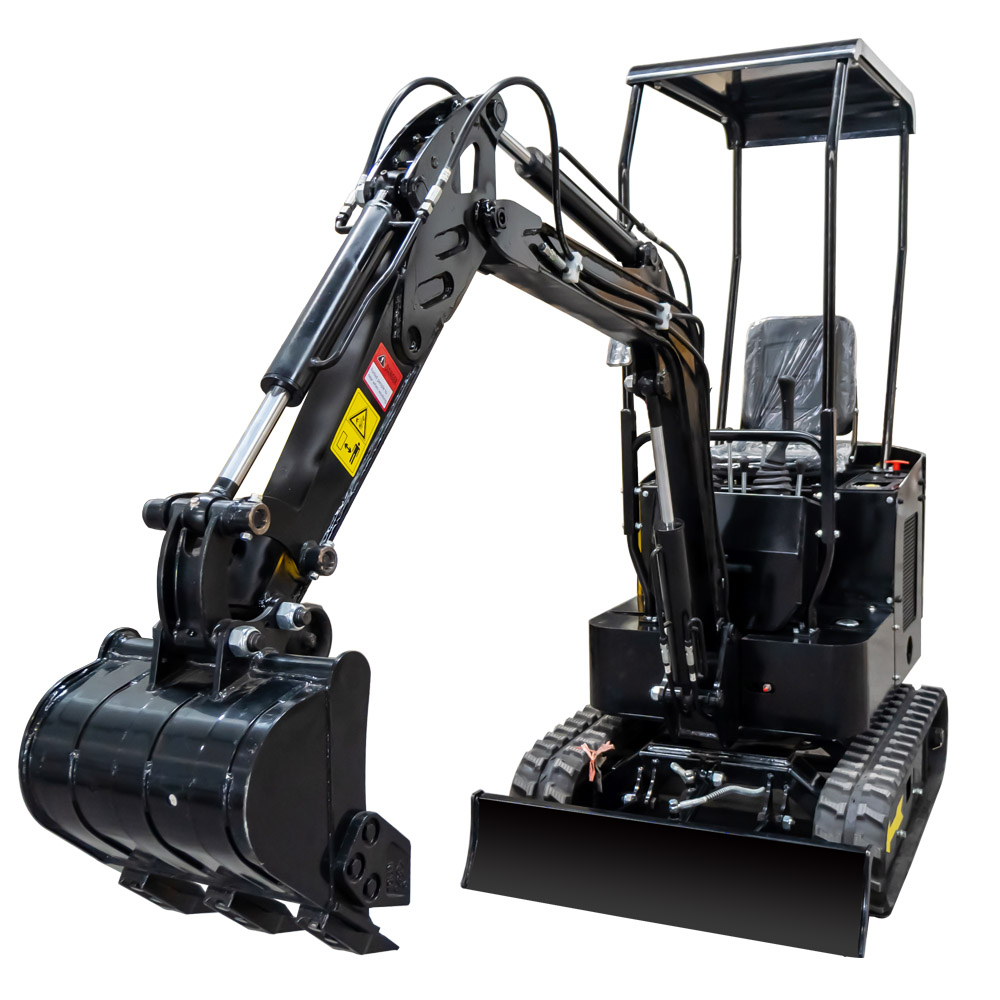

SL12 1.2T Mini Excavator Images
