PC10 Mini Excavator

PC10 Mini Excavator Configure

The hydraulic oil tank volume is 21L，which is 6 liters larger than other manu-facturers' excavator hydraulic oil tanks, which extends the continuous working hours in hot weather.

The dozer blade is retractable which can fully extend to 900mm width ,(other factories dozer blade is fixed at 700mm ),the machine body is more stable when working, especially working in the side direction, it is not easy to roll over.

It is a compact excavator, only 82 cm width which can easily fit through most doorways, permitting access inside of buildings.

The structural parts of the machine are processed by komatsu Engine sup-porting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules, and is more durable,non-bleaching and smoother. Other manu-facturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty.

For additional protection, a foldable rollover protective structure is standard-equipped on the PC10 which ensure the safety of operators.

The hydraulic pipes all imported from Continental AG Germany Company. Other hydraulic parts and the crawlers ,we cooperate with well-known domestic manufacturers.

With tie rods and screws on the track, the shaft will never bend due to large forces.

Use domestic well-known brand Changchai 192F engine, strong power and stable working,or popular Koop Engine Engine to meet Europe emission demand.

PC10 Mini Excavator Parameter

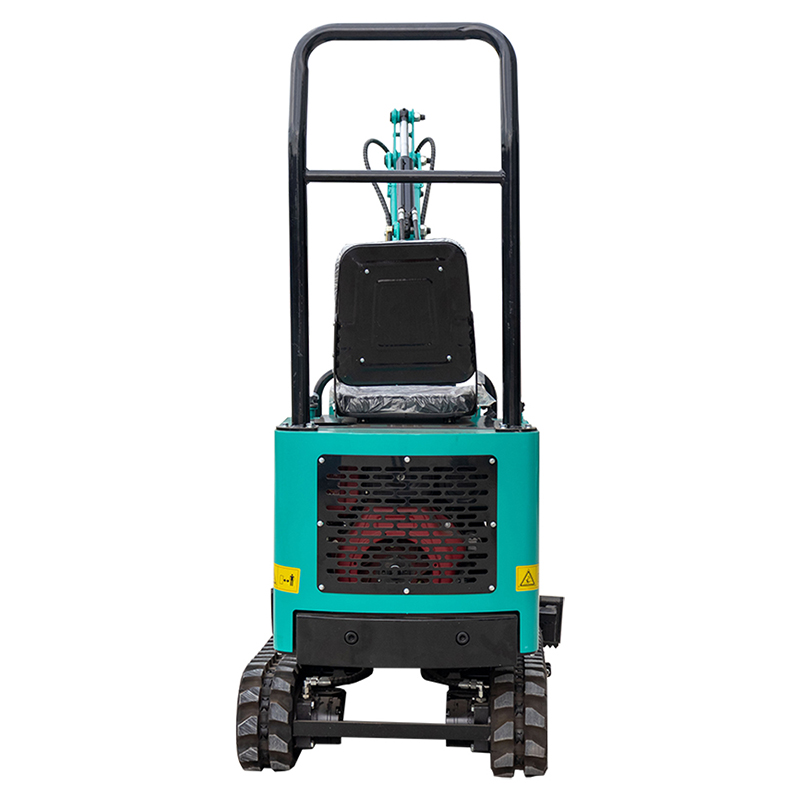

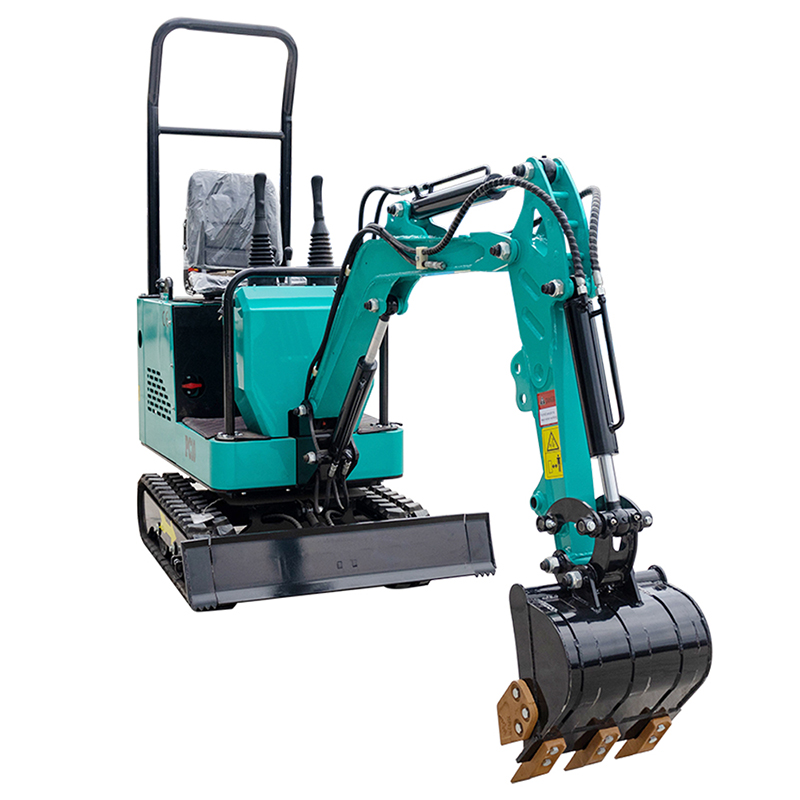

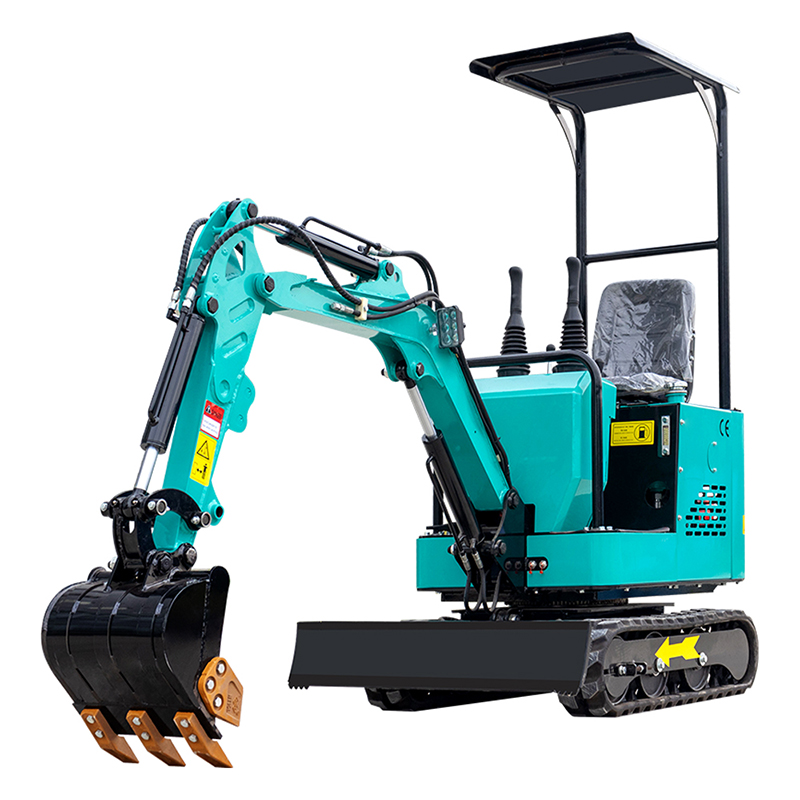

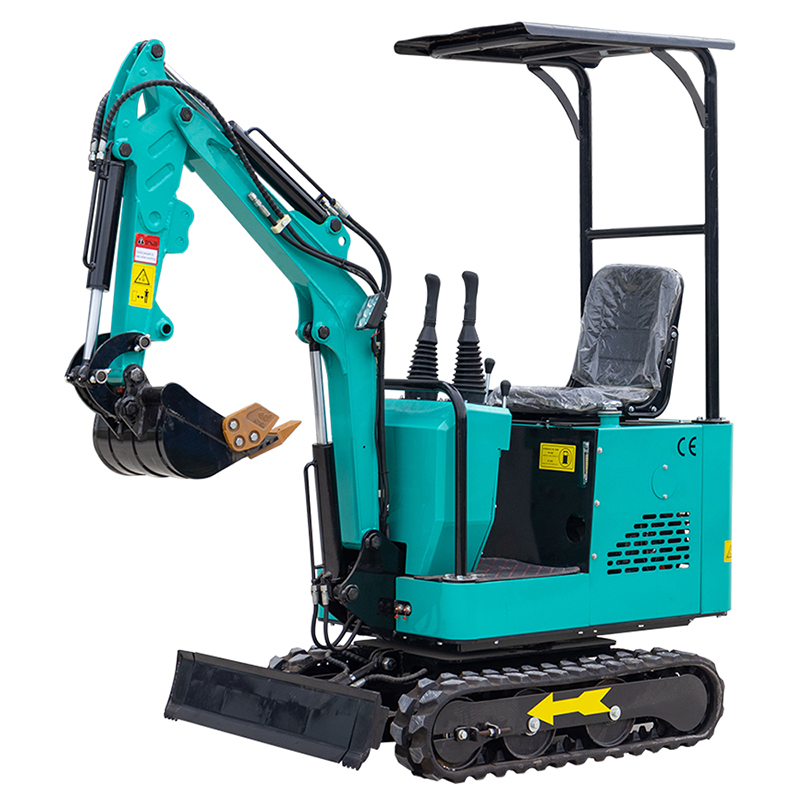

PC10 Mini Excavator Image
