SL18 Mini Excavator Kubota engine--low fuel consumption and guaranteed quality
1,Hydraulic pilots
2,Kubota engine--low fuel consumption and guaranteed quality
3,Boom swing
4,tailless
5,Rubber track---gear transmission, strong grip
6,Handstand arm
7,throttle valve
8,Dashboad
9,Add oil drain pipe for travel motor and swing motor
SL18 Mini Excavator Parameter | |

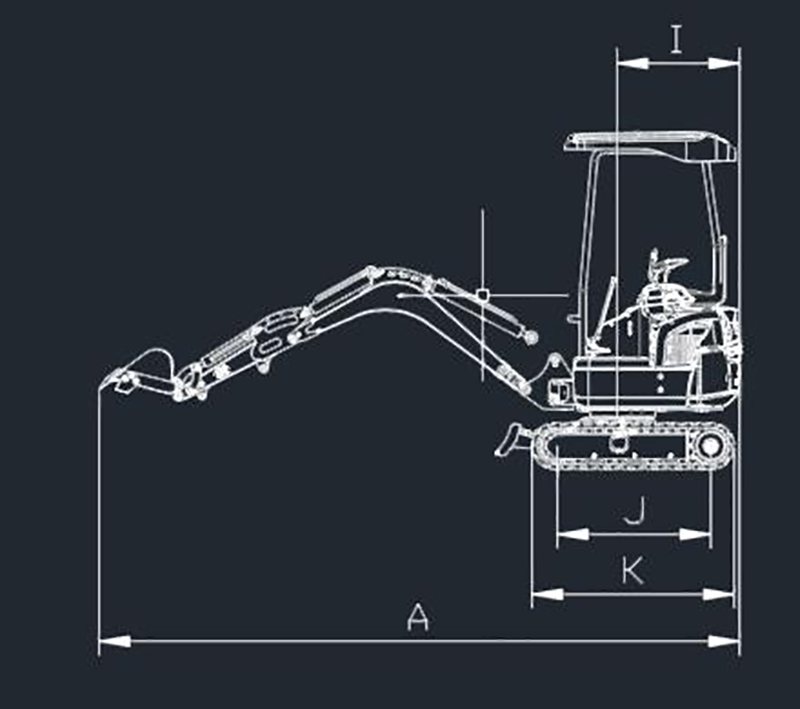

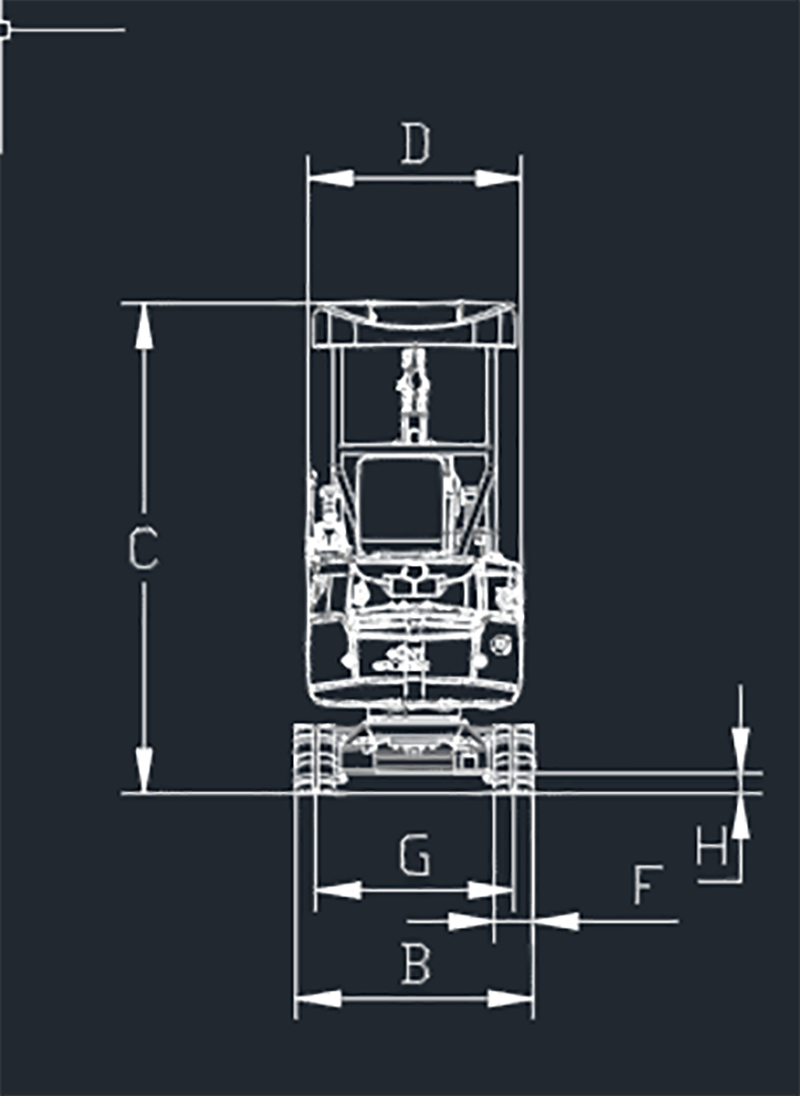

Overal size | |
(Overal legnth)A | 4325/1655 |
(Overall width)B | 1100 |
(Upper width)D | 990 |
(Overall height)C | 2272 |
(Standard track shoe width)F | 180 |
(Track Gauge)G | 920 |
(Min.ground clearance)H | 119 |
(Tail turning radius)I | 790 |
(Track ground length)J | 1050 |
(Track length)K | 1545 |
performance parameter | |
(Working weight)(KG) | 1500KG |
(Bucket capacity)M^3 | 0.02 |
(Power) | 10.2KW/2500RPM |
(swing speed) | 12RMP |
(Gradeability) | 30degrees |

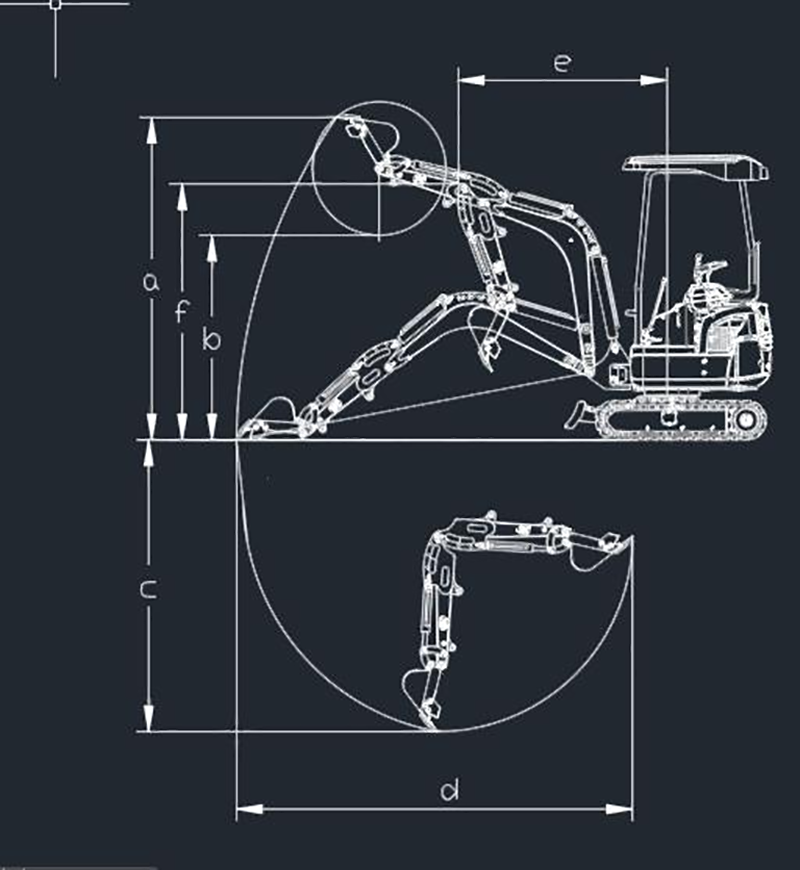

Working Range | |
(Max digging height)a | 2580 |
(Max.unloading height)b | 1637 |
(Max. digging depth)c | 2060 |
(Max. digging distance)d | 3160 |
(Min.turning radius) e | 1711 |
(Max. height at minimum turning radius)f | 2048 |
Boom swing Angle(left)° | 75 |
Boom swing Angle(right)° | 45 |
Main parts | |
Engine | Kubota D722; KOOP 292 |
Main vavel | Beifang |
