  • SL22 2.2ton mini excavator with Cabin

SL22 2.2ton mini excavator with Cabin

The 1.5-2ton agricultural mini excavator in the excavator is simple in operation and reliable in quality. It is also designed by itself.

SL22 2.2ton mini excavator with Cabin Description

SL22 2.2ton mini excavator with Cabin Introduction

The 1.5-2ton agricultural mini excavator in the excavator is simple in operation and reliable in quality. It is also designed by itself. The surface is sprayed, the appearance is beautiful, the working radius is small, and it can work in a small area. A wide range of operations, such as rotary drilling, breakers, loading buckets, grippers and other accessories.

Mini excavator suitable for agricultural orchards, greenhouses, etc. It is also suitable for indoor damage, basement and other places. It has the characteristics of easy operation, low maintenance cost and good equipment stability.

SL22 2.2ton mini excavator with Cabin Parameter

Machine Size



Overall dimension (L*W*H)

4170mm*1300mm*2280mm

Axle base(Track length on ground)

1230mm

Track gauge

1070mm

Min.Ground clearance

230mm

Swing radius at tail

1180mm

Track System



Maximum Travel speed

3.5km/h

Width of track shoe

230mm

Number of track shoe per side

38pcs

Number of upper roller per side

0

Number of bottom roller per side

4

Performance Parameter



Standard bucket capacity

0.1m³

Swing speed

12rpm

Max. Grade ability

30°

Max. Bucket digging force

15.3KN

Max. Arm digging force

10.5KN

Hydraulic system pressure

18Mpa

Machine weight

2200kg

Arm length

1000mm

Engine



Engine Model

Laidong 3TE30

Emission Standard

Euro 5

Power/Rotation speed

18.4kw(25HP)2000rmp

Number of cylinder

3

Working Range



Max. Digging height

3700mm

Max. Dumping height

2290mm

Max. Digging depth

2450mm

Max. Vertical digging depth

2160mm

Max. Digging radius

4370mm

Min .swing radius

2020mm

Max. Lifting height of blade

240mm

Max. Cutting depth of blade

310mm

Boom swing angle(Left)

75°

Boom swing angle(Right)

45°

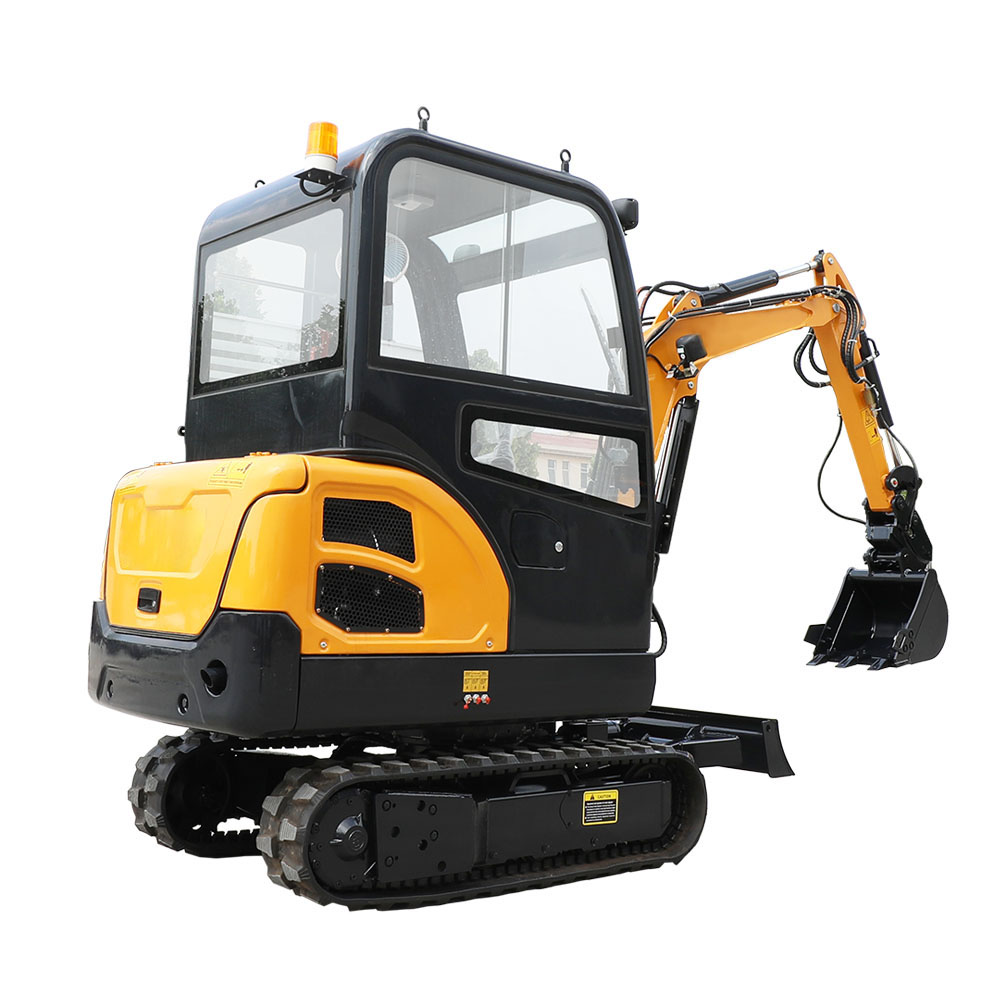

SL22 2.2ton mini excavator with Cabin Images
