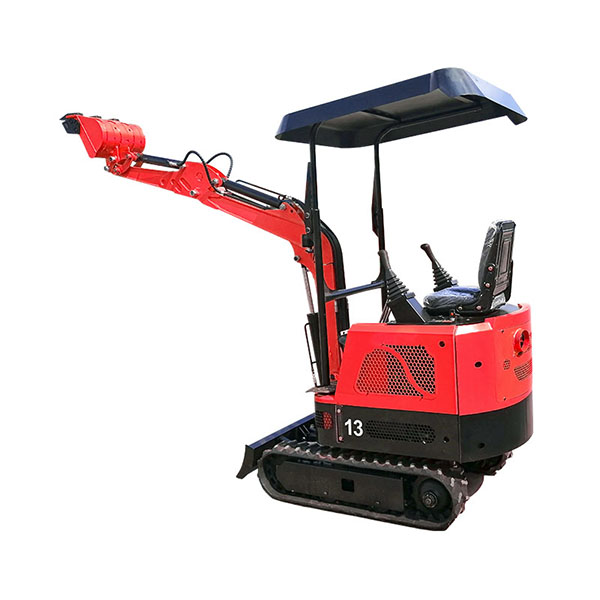

Double cylinder water cool engine, hydraulic joystick
|
Model |
SL13 |
|
Weight |
1300kg |
|
Digging bucket capacity |
0.025cbm/120kg |
|
Bucket width |
380mm |
|
Engine |
CHANGCHAI(EV80) |
|
Bore stroke |
double cylinder water cool |
|
Rated power |
12 kw/3600r/min |
|
Displacement |
0.794 L |
|
Travel speed |
3.5km/h |
|
Main Demensions |
|
|
Overall dimension(LxWxH) |
2550x940x1380 mm |
|
Wheelbase |
770mm |
|
Total length of track |
1090mm |
|
Platform ground clearance |
380 mm |
|
Platform back turning radius |
733 mm |
|
Chassis width |
940 mm |
|
Track width |
180 mm |
|
Chassis ground clearance |
380 mm |
|
Track height |
320 mm |
|
Operating Range |
|
|
Max.Digging depth |
1650 mm |
|
Max.Vertical digging depth |
1375 mm |
|
Max.Digging height |
2610 mm |
|
Max.Dumping height |
1850 mm |
|
Max.Digging radius on ground |
2850 mm |
|
Min.Rotation radius |
1330 mm |
|
Max.Upgrade height of bulldozer blade |
345 mm |
|
Max.Digging depth of bulldozer blade |
255 mm |
