SL18 1.8T Mini Excavator

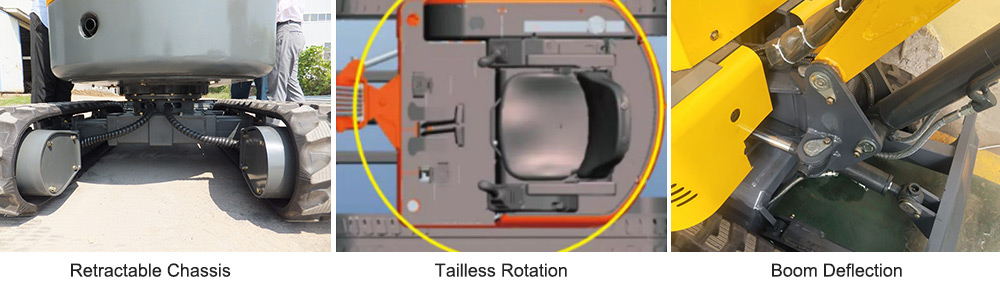

SL18 Mini Excavator Yanmar engine, Double speed, Retractable shoes,Boom swing, Tailless rotation

SL18 1.8T Mini Excavator Description

SL18 1.8T Mini Excavator

Yanmar engine, Double speed, Retractable shoes,Boom swing, Tailless rotation

SL18 1.8T Mini Excavator Feature:

1. The easy operation and convenient operation device are in line with the new generation human engineering working environment.
2. The engine has the features of strong power, low noise, low emission, low fuel consumption, and convenient maintenance etc. Its performance, noise, emissions are all up to the highest level in Europe.
3. The strengthened crawler enhances the wear resistance of the track effectively and prolongs the service life of the track at the same time.
4. Reasonable hydraulic layout greatly facilitates the inspection and maintenance of hydraulic system.
5. The precise instrument is the intelligent monitoring housekeeper of the excavator.

SL18 1.8T Mini Excavator Advantages :

1. Imported famous brand engine and hydraulic system with global warranty
2. Self produced working equipment, upper carriage and under carriage , heat treatment with high rigidity
3. Smooth working performance with high efficiency
4. Competitive price with high reliability
5. Real warranty supplied by original manufacturer
6. More than 10 years experiences

SL18 1.8T Mini Excavator Parameter

Machine Size
Overall dimension (LWH)	3865mm* 1050mm*2270mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
Track System
Maximum Travel speed	3 5km/h
Width of track shoe(Rubber & steel track)	230mm
Number of track shoe per side(Steel track only)	38 pcs
Number of upper rller/ bottom roller (per side)	0/4
Performance Parameter
Standard bucket capacity	0.06m3
Swing speed	10~12 rpm
Max. Grade ability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Hydraulic system pressure	18Mpa
Machine weight	1800kg
Engine
Emission Standard	Tier 3/ Stage II
Make	LAIDONG
Model	3TE25
Power /Rotation speed	18.4kw(25HP)@2350rpm
Number of cylinder	3
Working Range
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1725mm
Max. Digging radius	3860mm
Min .swing radius	1720mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	27 5mm
Boom swing angle(Lef)	75°
Boom swing angle(Right)	45°
