SL5050 Mini Dumper

SL5050 Mini Dumper

SL5050 Mini Dumper Description

SL5050 Mini Dumper Parameter

MASSES



Max. operating mass

860 kg

Transport mass

360 kg

DIMENSIONS



Overall (LxWxH)

2112x832x1344 mm

Transport dimensions(LxWxH)

1480x832x1344 mm

HYDRAULIC



Pump

Tandem gear pump (4cc x2) 3600rpm

Motor

Disc distribution cycloid motor (x2)

Working pressure

Max. 180 bar

Hydraulic flow

28.8 L

Motor torque

645 Nm each at 180 bar

TRACTION



Driving

Hydraulic

Steering

Fully hydraulic / control valve

Forward

3.2 km/h

Reverse

3.2 km/h

Gradeability

15 ⁰

Ground clearance

71 mm

ENGINE



Model

BRIGGS&STRATTON

Emission accordance

EPA

Rated power

6.5 HP

Displacement

208 cc

Cylinder x stroke

68.3x55.9 mm

Fuel tank volumn

3.1 L

Oil volume

0.6 L

Net weight

16 Kg

Startup

Reversing & E-starter

HOPPER



Hopper volumn

270 L

STANDARD CONFIG.



1)Seperate hydraulic circuit for equipment traction



2)Forward and reverse drive controls by handle



3)Customized transition gear box for easy engin startup with low ambient temperature





4)Option with reverse startup and electric



5)Foldable platform for flexiable maneuver



6)Detachable hopper protection

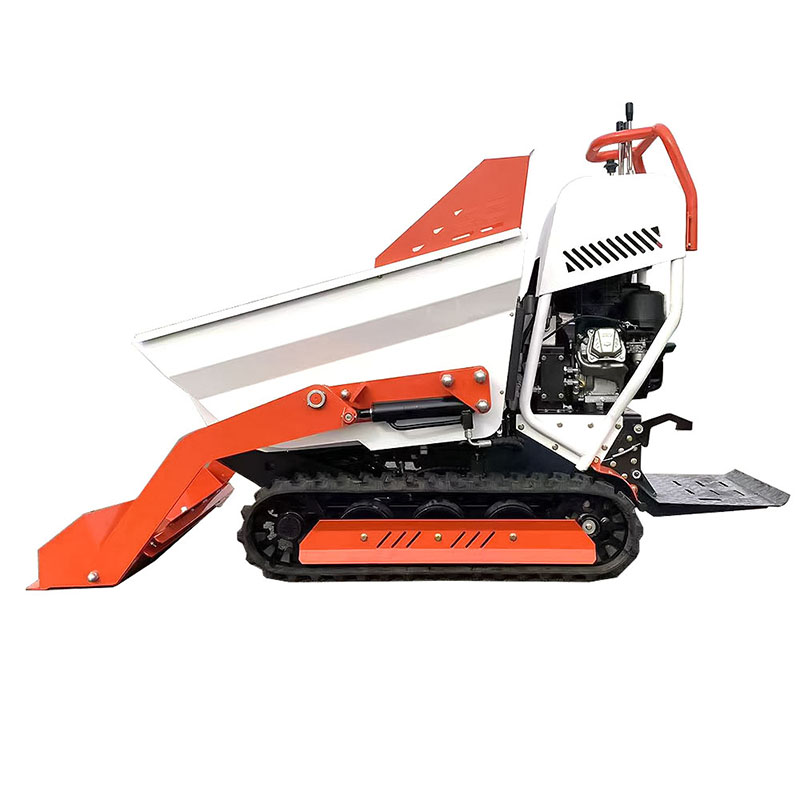

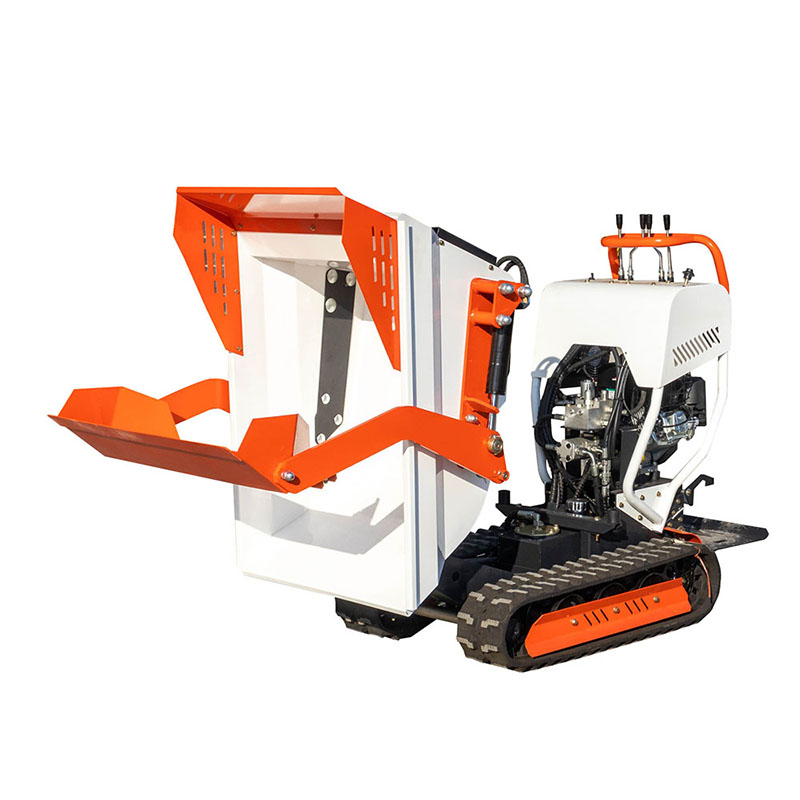

SL5050 Mini Dumper Images
